MC10S

Nachi’s MC10L Robot incorporates high speed, generous allowable wrist torqe, extended reach capability, and linkless arm design to provide a new standard of functional performance. The MC10L robot achieves superior performance with improved high-speed motion and excellent positional accuracy.  This long arm model extends reach to an impressive 2019mm and provides point repeatability of ± 0.06mm. The slim base minimizes required floor space and provides floor or ceiling mounted options to further extend application possibilites and reduce work cell size. Compact arm design reduces interference with peripheral equipment and is also IP65 compliant.  Internal air supply lines and signal cabling support numerous applications, optional internal pneumatic valves eliminate the need for shoulder-mounted valve packages.

____________________________________

Detailed Technical Specification (PDF)
Category:

Description

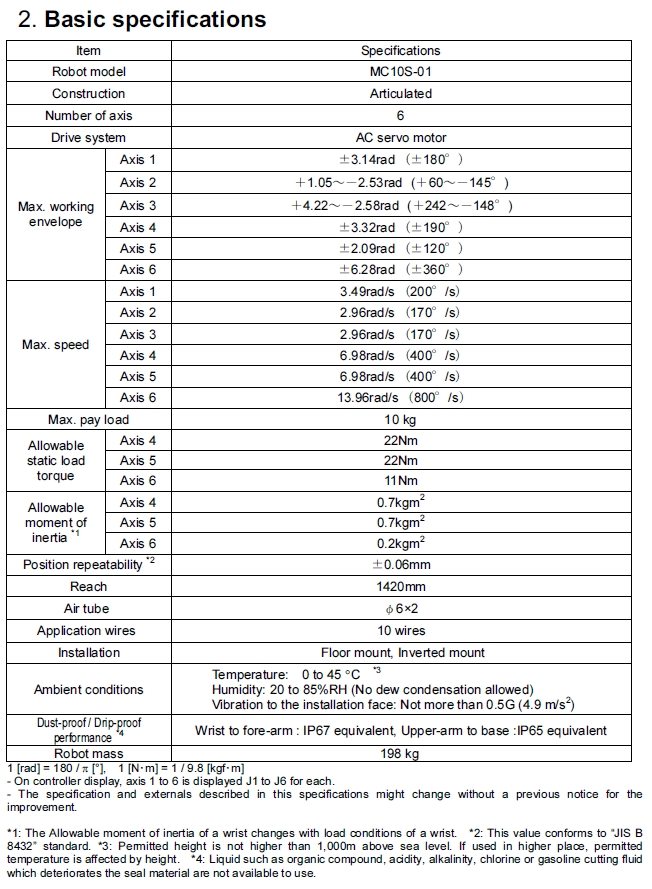

MC10S General Specifications

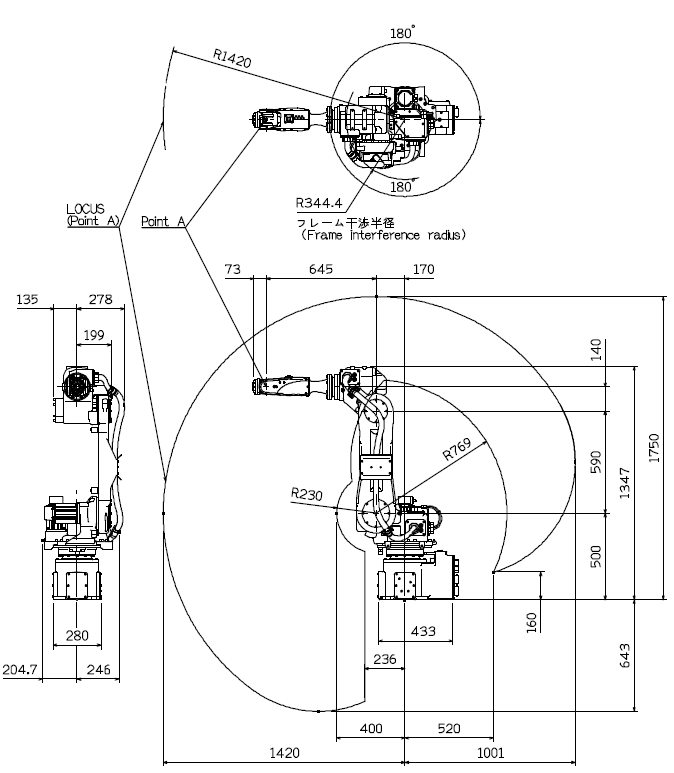

MC10S Robot Dimensions and Working Envelope


MC10S Faceplate Hole Pattern for Mounting End of Arm Tooling


MC10S Baseplate Mounting Information and Robot Footprint

Additional information

Weight 10 kg
Reach

2019

Payload

10

Application

Machine Tending, Material Handling, Palletizing, Dispensing

Mount

Wallmount, Invert/Ceiling Mount
