MC280L

The MC280L is specifically designed for heavy and repetitive lifting tasks up to 280Kg capacity where extended reach is required.  In addition to high payload capacity the MC280L provides an impressive 3101mm work envelope to perform work on several products or machines simultaneously.  Superior strength, regidity, and reach allow allow the MC280L to excel in large scale lifting operations including car bodies, engines, foundry components, and many other heavy industrial products.  MC Heavyweight robots have been used across North America to replace dedicated industrial elevators and transfer equipment for a small fraction of the cost while also providing the flexibility of robotic equipment.  If you need to move heavy or large objects with precision look no further than the Nachi MC280L.

____________________________________

Brochure (PDF) Detailed Technical Specification (PDF)
Category:

Description

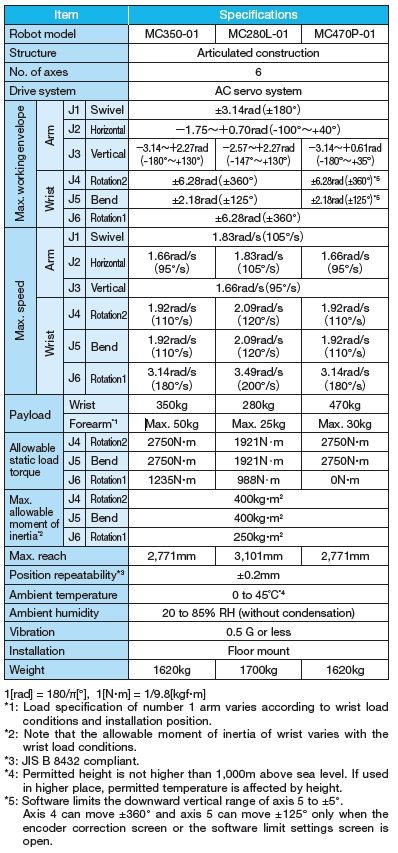

MC280L Basic Specifications

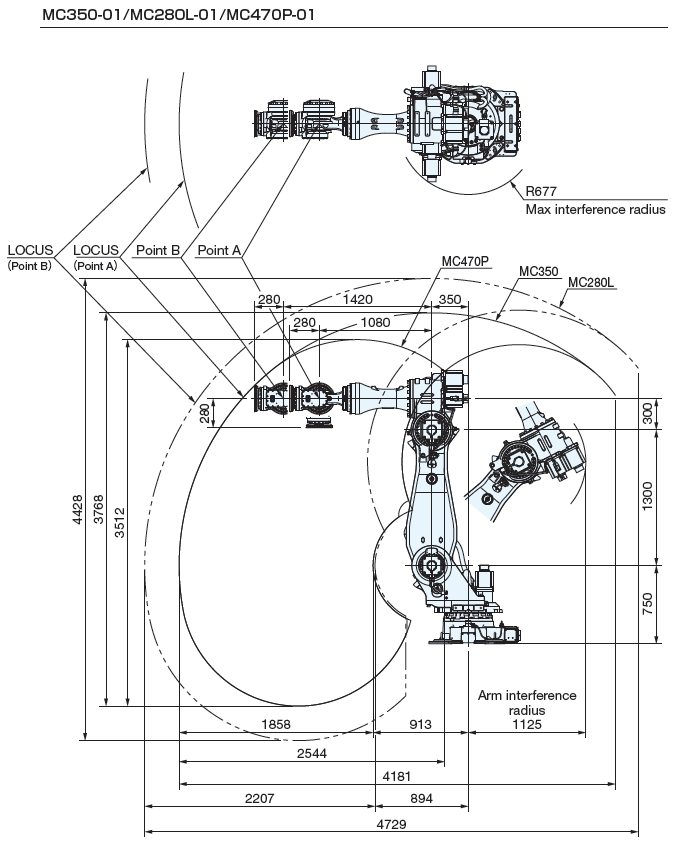

 MC280L Robot Dimensions and Working Envelope

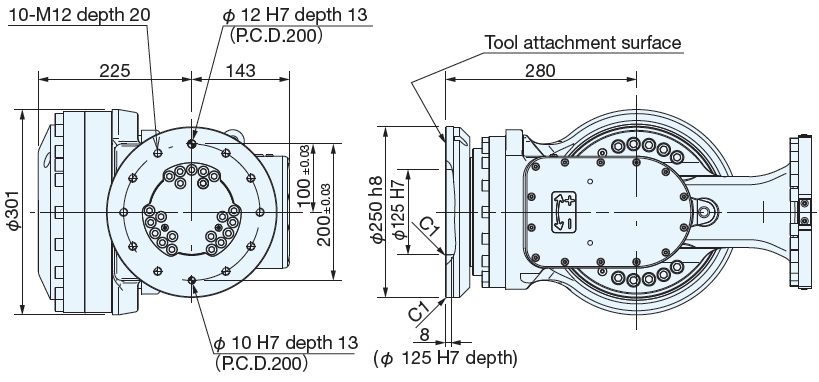

Faceplate Hole Pattern for Mounting End of Arm Tooling

Additional information

Weight 1660 kg
Reach

3101

Payload

280

Application

Machine Tending, Material Handling, Palletizing, Spot Welding

Mount

Floor
