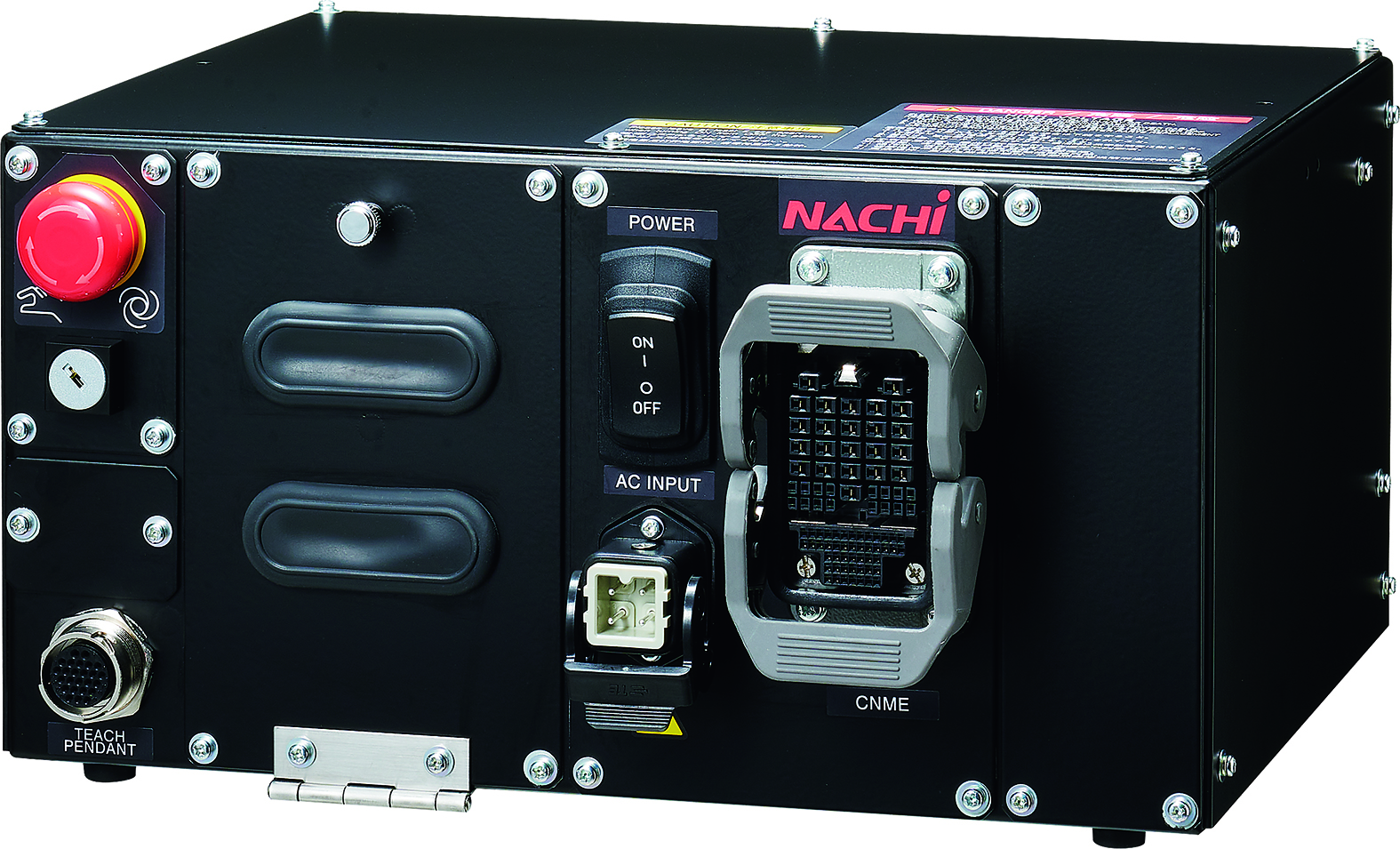

CFDs Controller

CFDs Controller Brochure

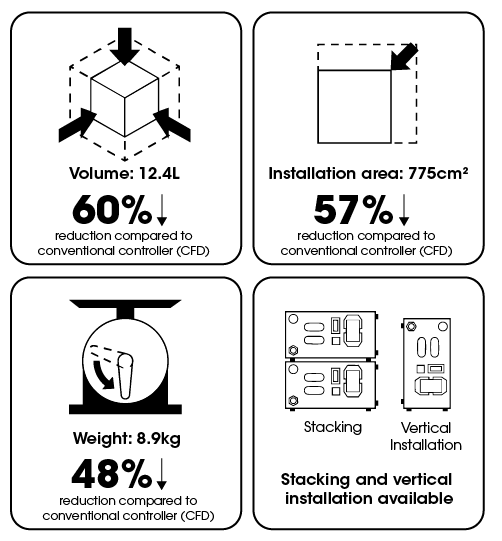

More Flexibility in Layout

• Compact robot controller. With a lightweight design that can
  be installed anywhere, it can be placed vertically and stacked

Easy and Comfortable Operation

• Comfortable operation by the easy-to-grip teach pendant with
  high-resolution touch panel and optimal control by 4-core CPU

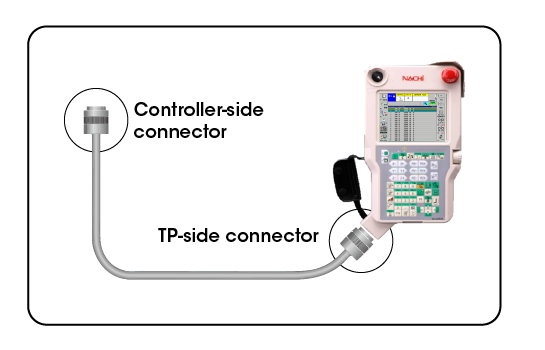

• The teach pendant and cable both have connectors and can
  be replaced independently
• Now easier to use with software (UI) improvements

High Expansibility

• Additional 1 axis for servo hand + other additional 1 axis, up
  to additional 2 axes control available (option)

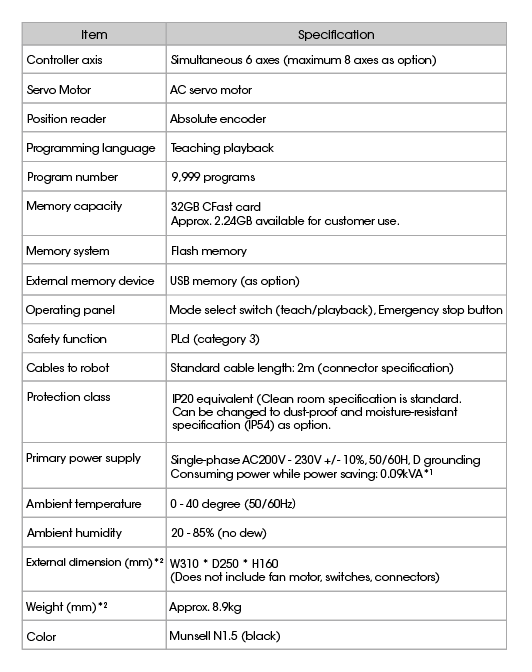

Controller Specification

*1：In power saving, the servo motor power is turned off temporary and the robot arm is held by brake.
*2：External dimension and weight may vary based on options.

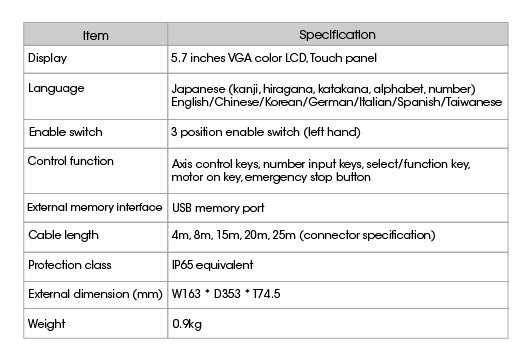

Teach Pendant Specification

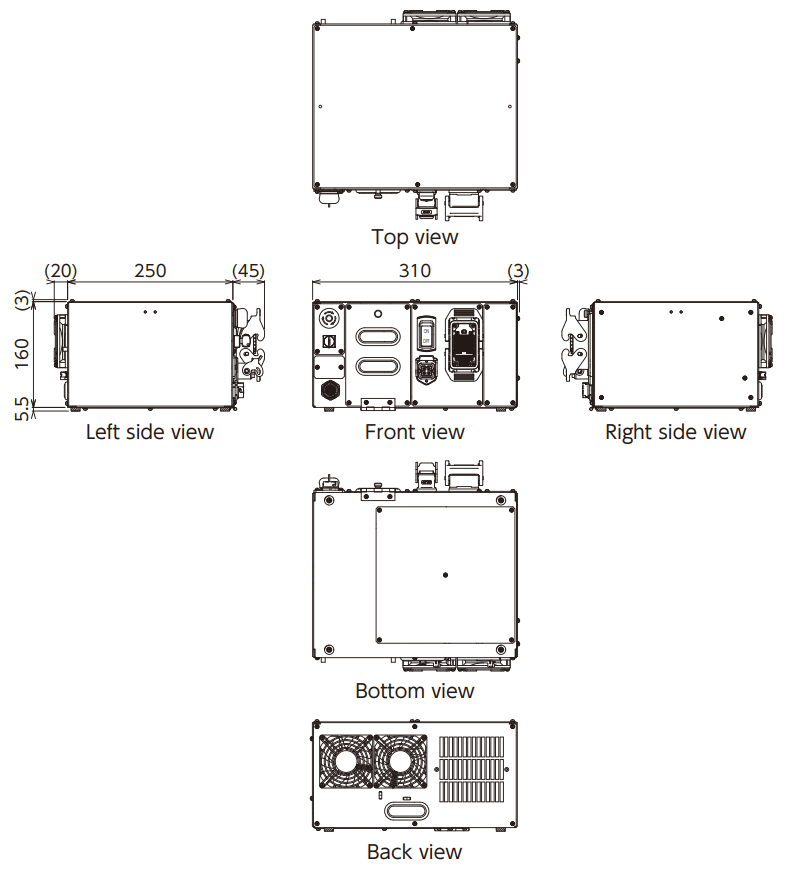

External Dimension
