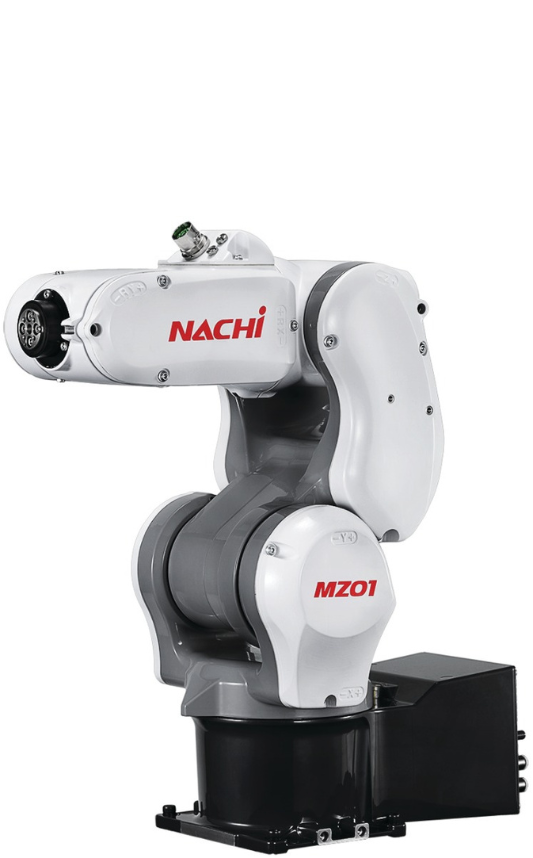

MZ01
MZ03EL

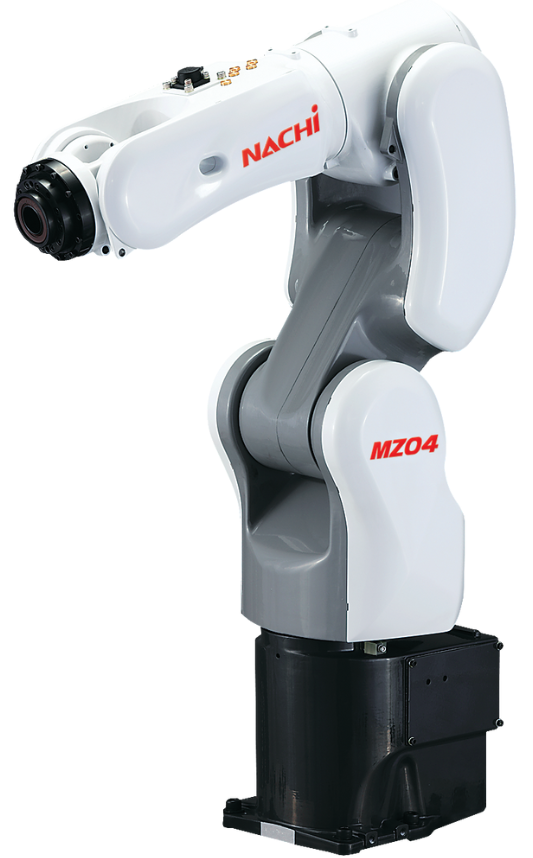

MZ04

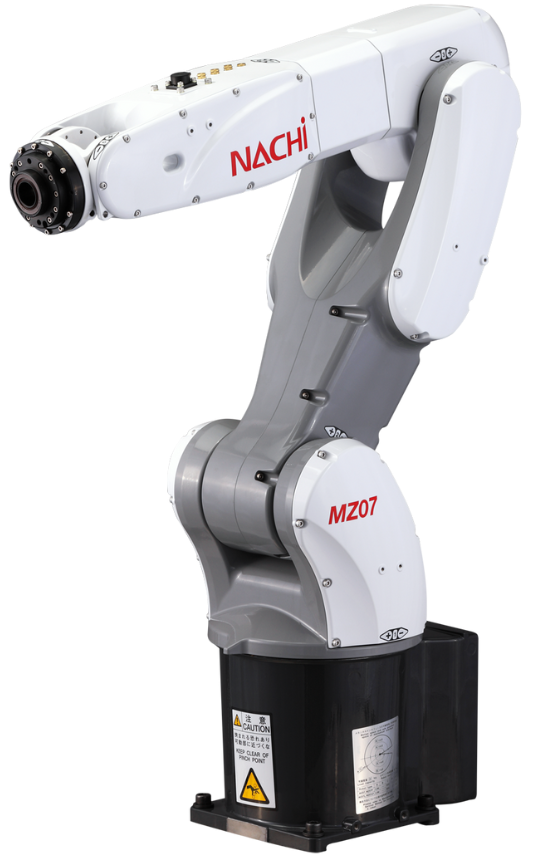

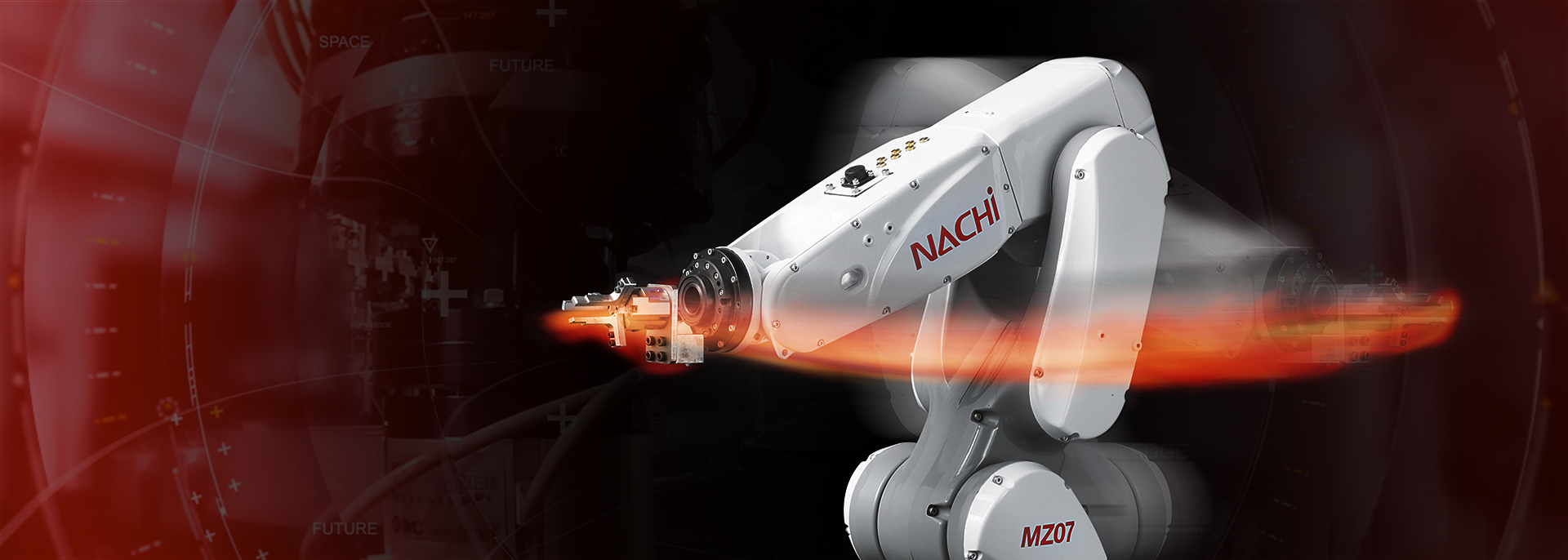

MZ07
| Reach | 350mm |
| Payload | 1kg |
| Axes | 6 |
| Repeatability | ±0.02mm |
| Reach | 1102mm |
| Payload | 3.5kg |
| Axes | 6 |
| Repeatability | ±0.03mm |
| Reach | 541mm |
| Payload | 4kg |
| Axes | 6 |
| Repeatability | ±0.02mm |
| Reach | 723mm |
| Payload | 7kg |
| Axes | 6 |
| Repeatability | ±0.02mm |
MZ07L

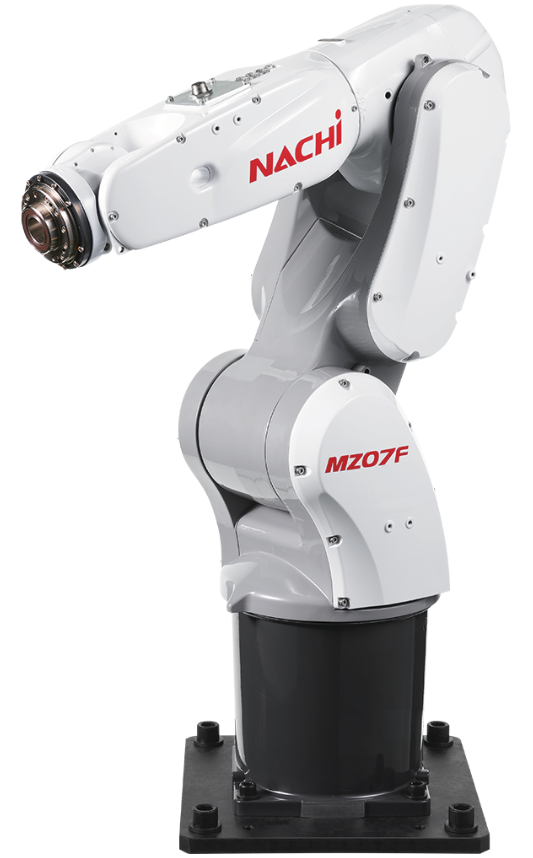

MZ07F
MZ07LF

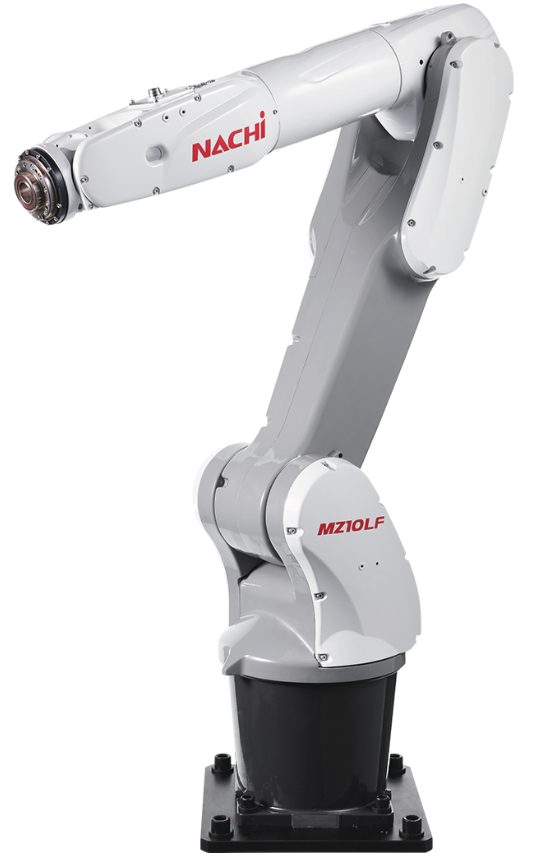

MZ10LF
| Reach | 912mm |
| Payload | 7kg |
| Axes | 6 |
| Repeatability | ±0.03mm |
| Reach | 723mm |
| Payload | 7kg |
| Axes | 6 |
| Repeatability | ±0.015mm |
| Reach | 912mm |
| Payload | 7kg |
| Axes | 6 |
| Repeatability | ±0.020mm |
| Reach | 1202mm |
| Payload | 10kg |
| Axes | 6 |
| Repeatability | ±0.020mm |

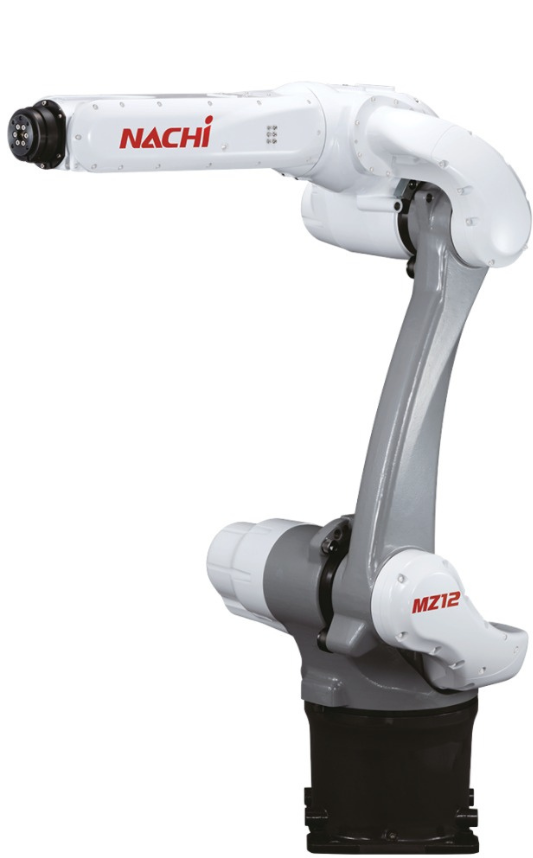

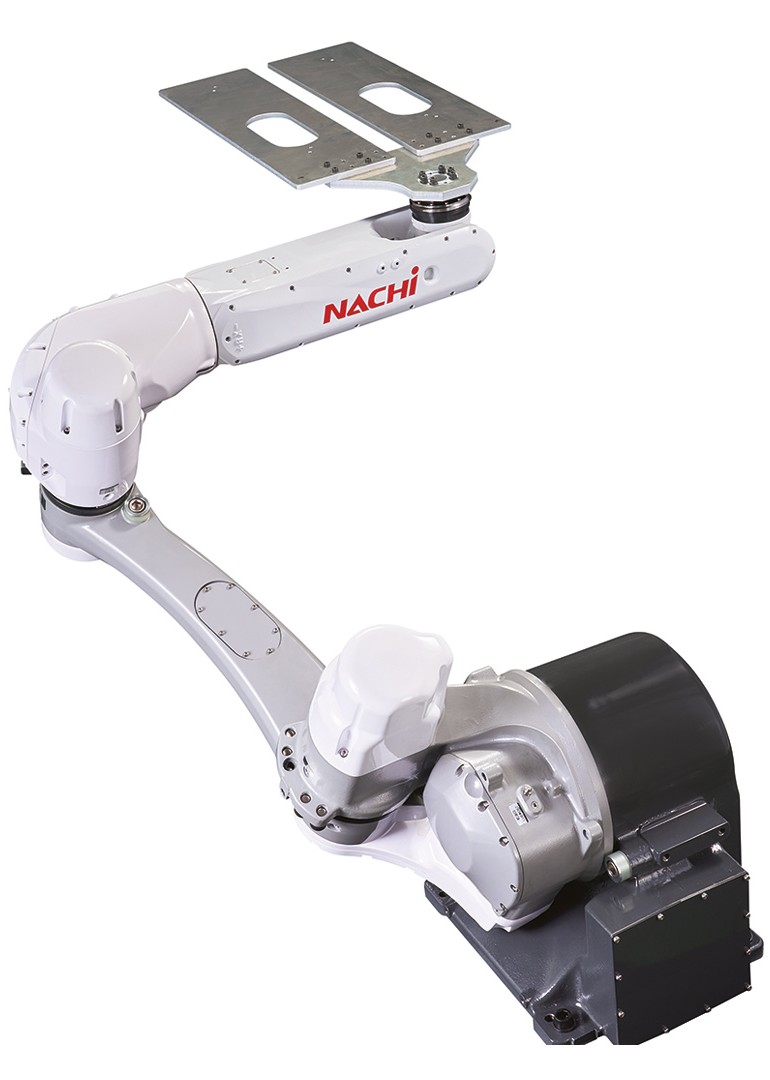

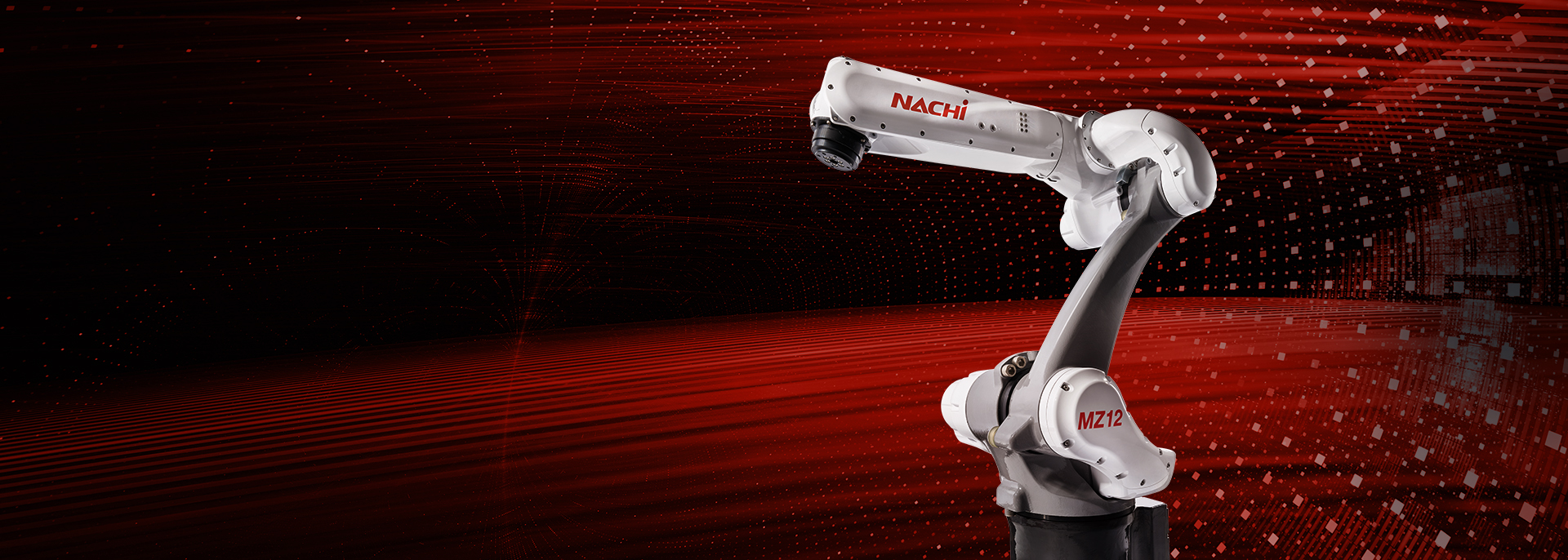

MZ12

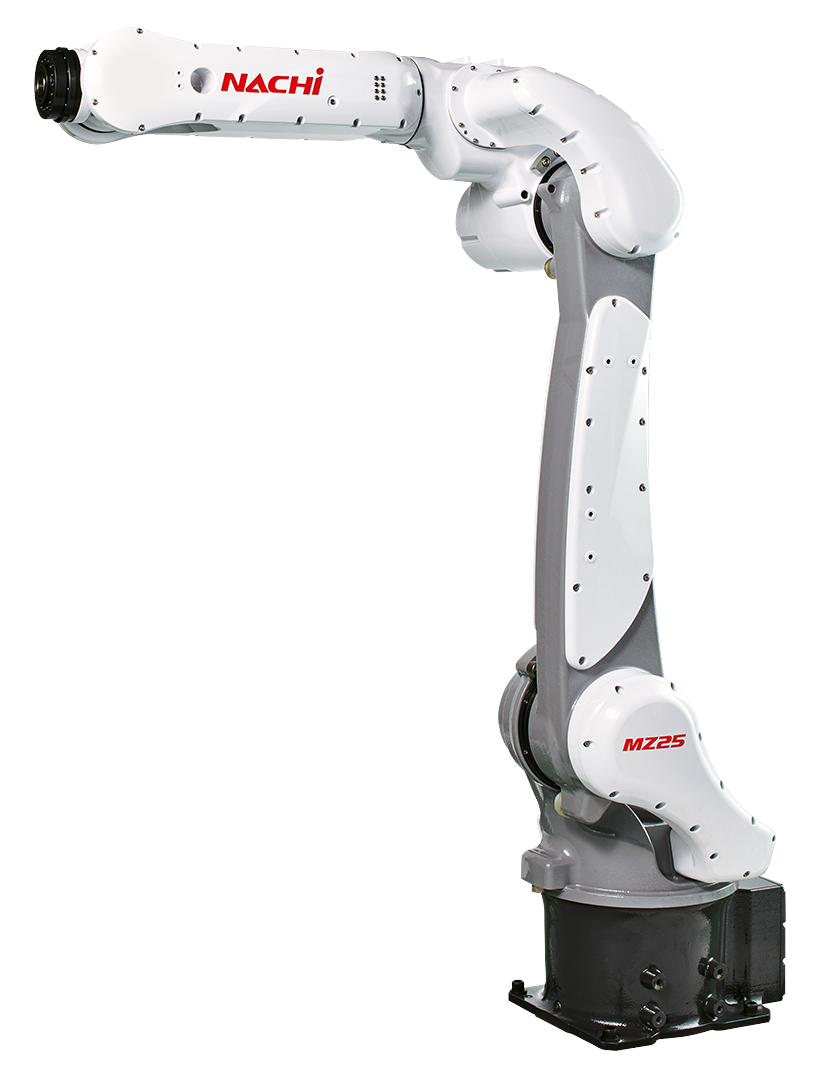

MZ25

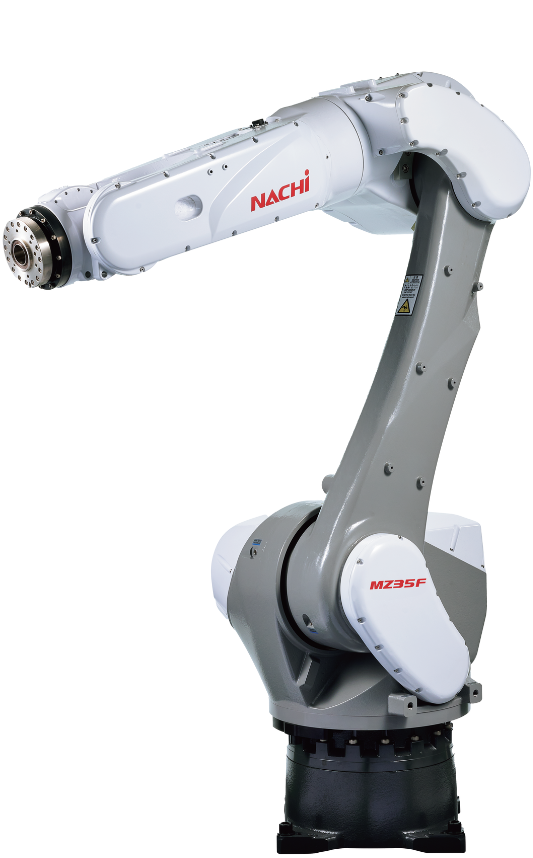

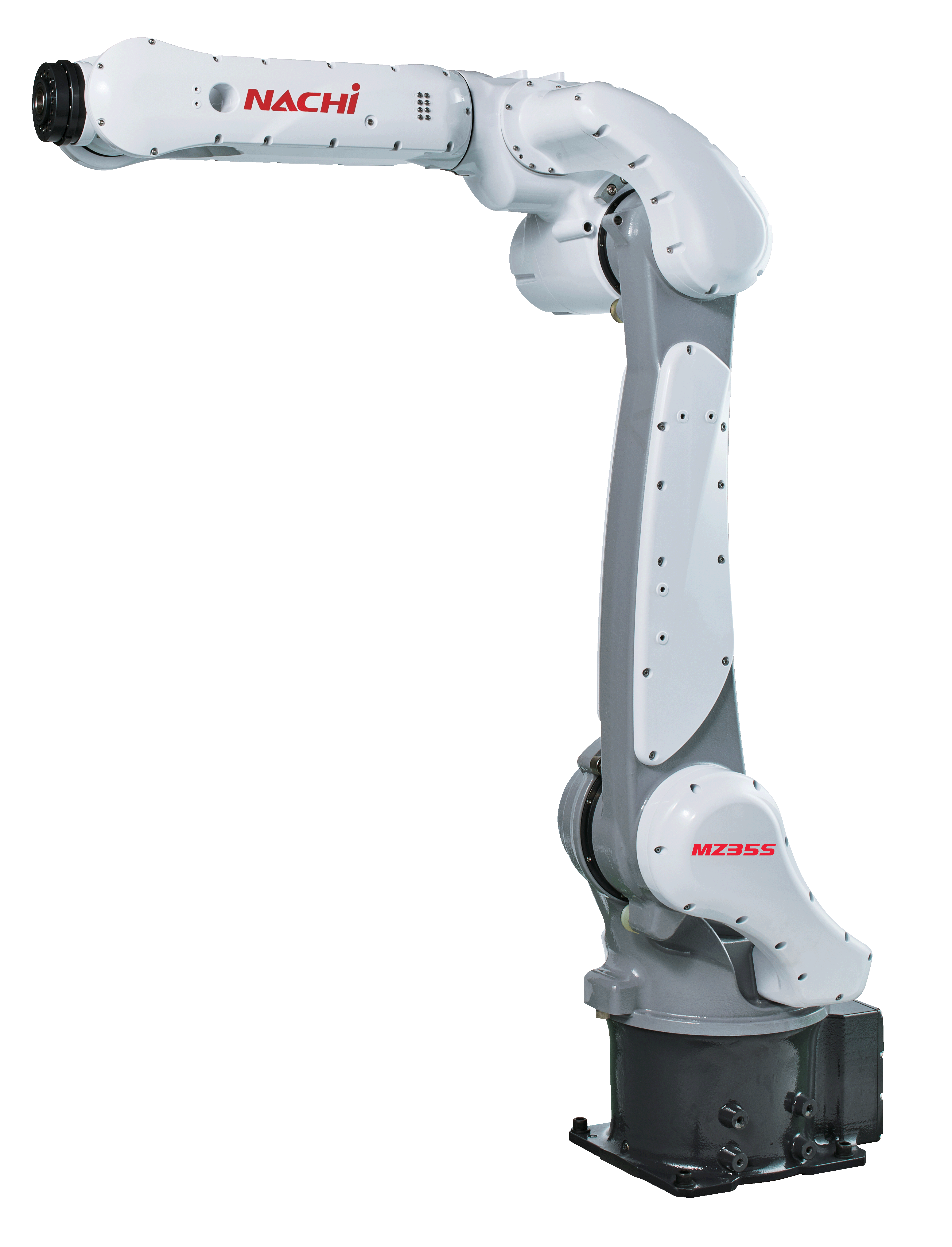

MZ35F

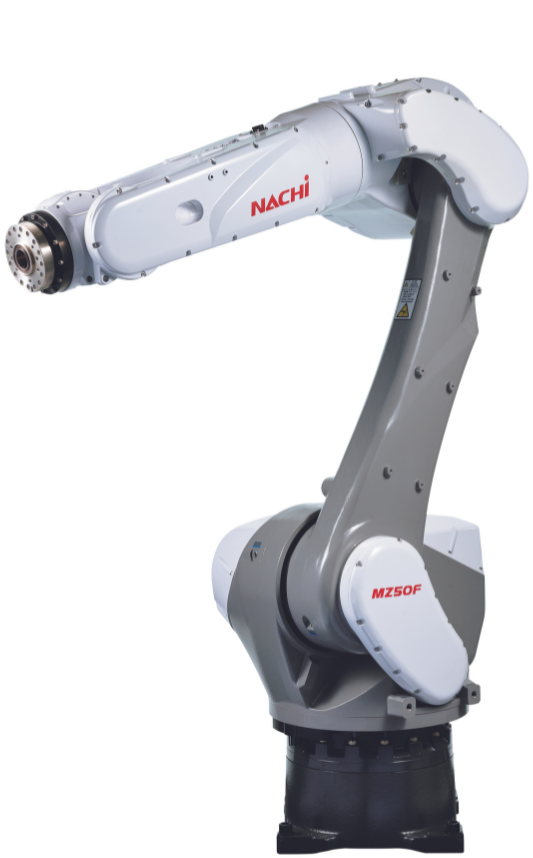

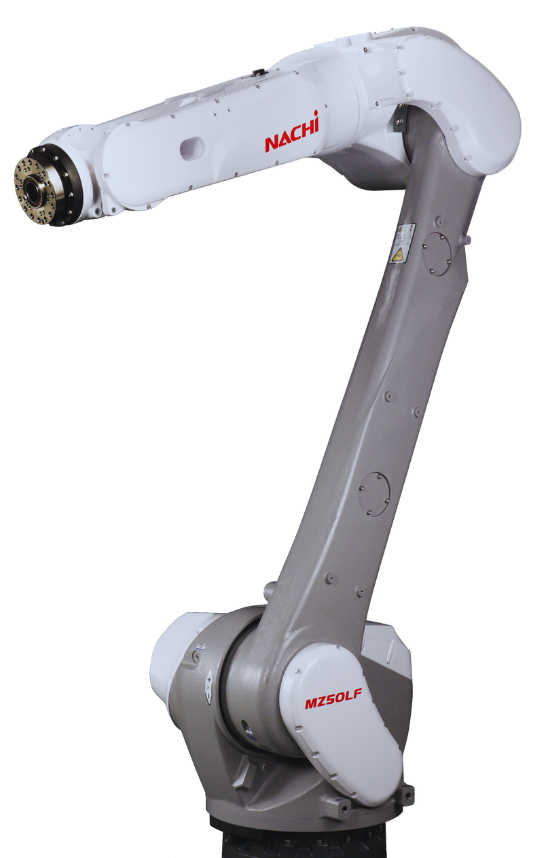

MZ50F
| Reach | 1454mm |
| Payload | 12kg |
| Axes | 6 |
| Repeatability | ±0.04mm |
| Reach | 1882mm |
| Payload | 25kg |
| Axes | 6 |
| Repeatability | ±0.05mm |
| Reach | 2102mm |
| Payload | 35kg |
| Axes | 6 |
| Repeatability | ±0.06mm |
| Reach | 2102mm |
| Payload | 50kg |
| Axes | 6 |
| Repeatability | ±0.06mm |
MZ50LF
MZ70F
| Reach | 2502mm |
| Payload | 50kg |
| Axes | 6 |
| Repeatability | ±0.02mm |
| Reach | 2102mm |
| Payload | 70kg |
| Axes | 6 |
| Repeatability | ±0.06mm |
Collaborative
CZ05F
CZ10
CZ12F
| Reach | 927mm |
| Payload | 5kg |
| Axes | 6 |
| Repeatability | ±0.020mm |
| Reach | 1300mm |
| Payload | 10kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
| Reach | 1000mm |
| Payload | 12kg |
| Axes | 6 |
| Repeatability | ±0.025mm |
SCARA

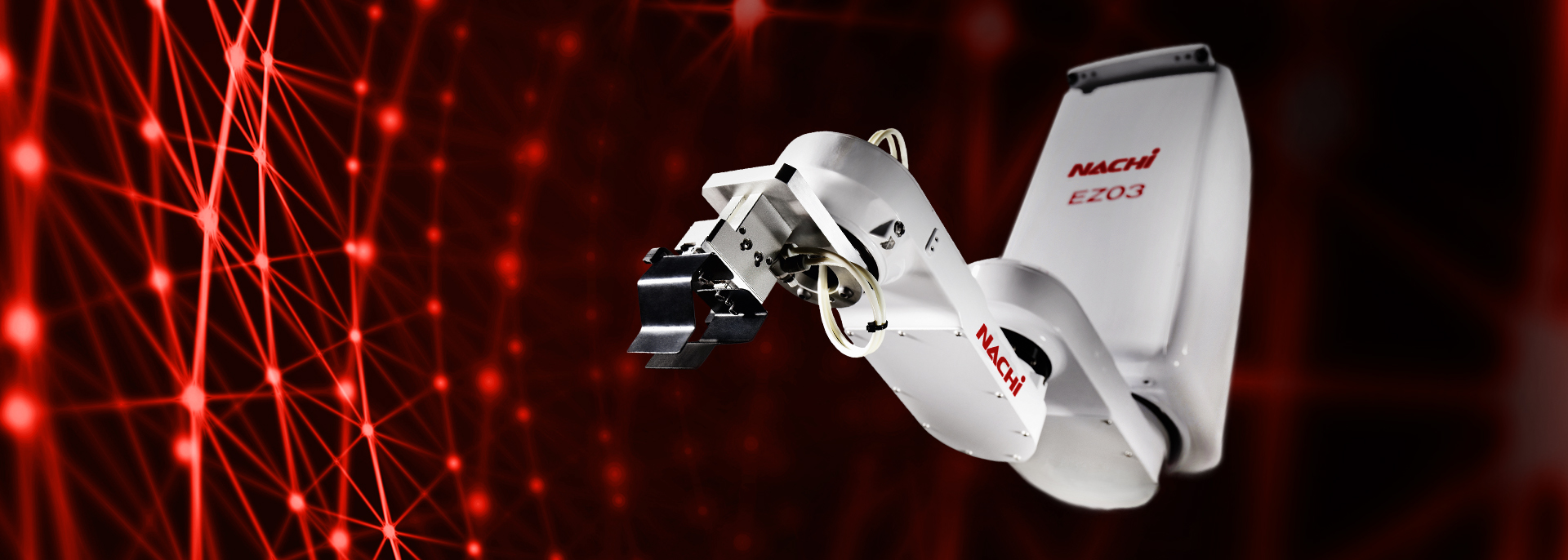

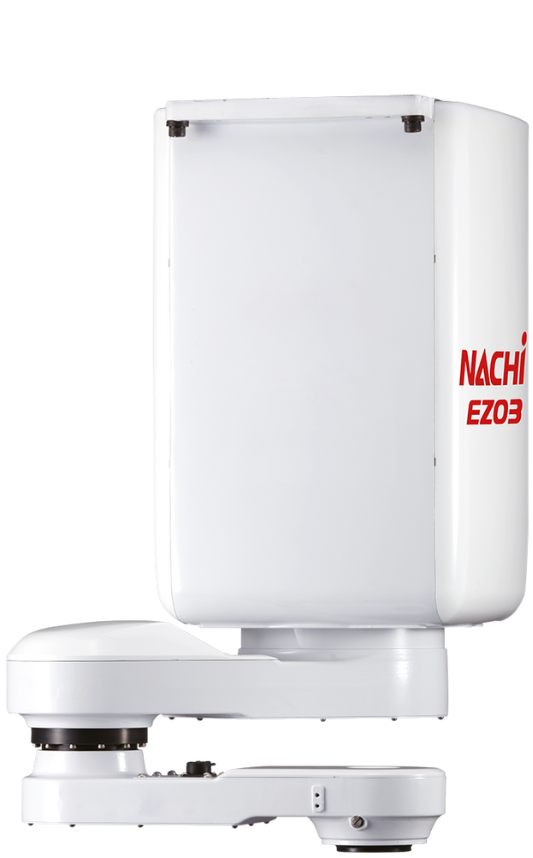

EZ03
| Reach | 450/550mm |
| Payload | 3kg |
| Axes | 4 |
| Repeatability | ±0.014mm |
SCARA

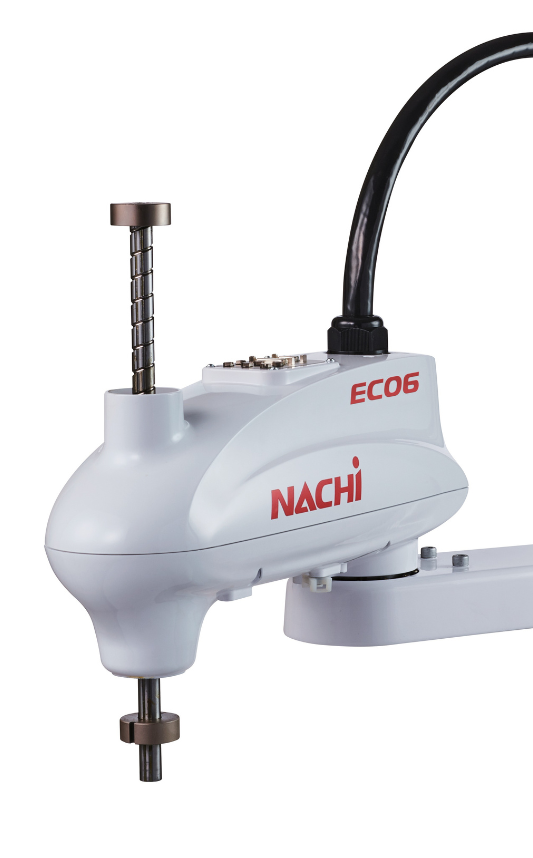

EC06

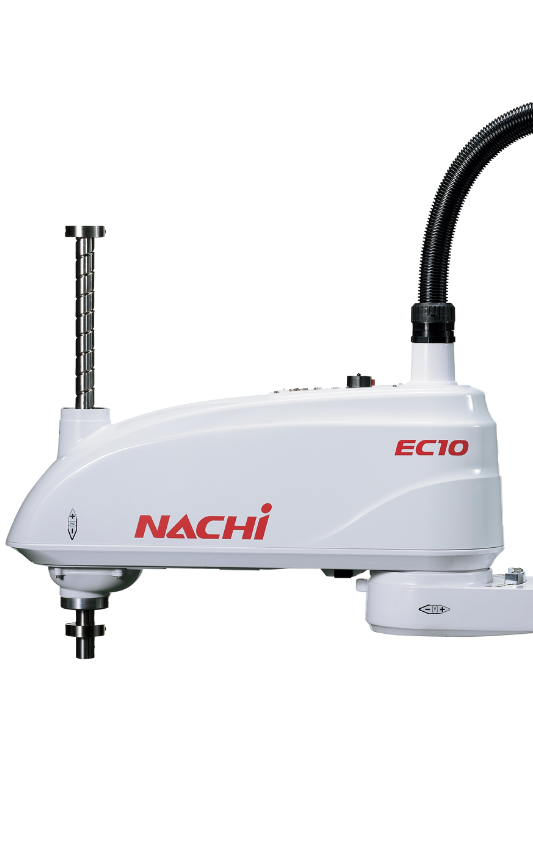

EC10
| Reach |
500/600 /700mm |
| Payload | 6kg |
| Axes | 4 |
| Repeatability | ±0.025mm |
| Reach | 800/1000mm |
| Payload | 12kg |
| Axes | 4 |
| Repeatability | ±0.025mm |
SRA100B
SRA100J
Compact
| Reach | 2071mm |
| Payload | 100kg |
| Axes | 6 |
| Repeatability | ±0.01mm |
| Reach | 1634mm |
| Payload | 100kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
SRA100
SRA166
SRA210
Standard Reach
| Reach | 2654mm |
| Payload | 100kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
| Reach | 2654mm |
| Payload | 166kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
| Reach | 2674mm |
| Payload | 210kg |
| Axes | 6 |
| Repeatability | ±0.15mm |
SRA240
SRA250
| Reach | 2674mm |
| Payload | 240kg |
| Axes | 6 |
| Repeatability | ±0.2mm |
| Reach | 2792mm |
| Payload | 250kg |
| Axes | 6 |
| Repeatability | ±0.2mm |
SRA120EL
SRA133L
SRA166L
Long Reach
| Reach | 3099mm |
| Payload | 120kg |
| Axes | 6 |
| Repeatability | ±0.15mm |
| Reach | 2651mm |
| Payload | 133kg |
| Axes | 6 |
| Repeatability | ±0.15mm |
| Reach | 2951mm |
| Payload | 166kg |
| Axes | 6 |
| Repeatability | ±0.15mm |
SRA166T
SRA166TL
SRA210
Shelf Mount
| Reach | 3153mm |
| Payload | 166kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
| Reach | 3734mm |
| Payload | 166kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
| Reach | 3192mm |
| Payload | 210kg |
| Axes | 6 |
| Repeatability | ±0.15mm |
SRA100H
SRA100HB
SRA133H
Hollow Arm Robots
| Reach | 2654mm |
| Payload | 100kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
| Reach | 2044mm |
| Payload | 100kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
| Reach | 2654mm |
| Payload | 133kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
SRA133HL
SRA166H
SRA210H
| Reach | 2951mm |
| Payload | 133kg |
| Axes | 6 |
| Repeatability | ±0.15mm |
| Reach | 2654mm |
| Payload | 166kg |
| Axes | 6 |
| Repeatability | ±0.1mm |
| Reach | 2654mm |
| Payload | 210kg |
| Axes | 6 |
| Repeatability | ±0.15mm |

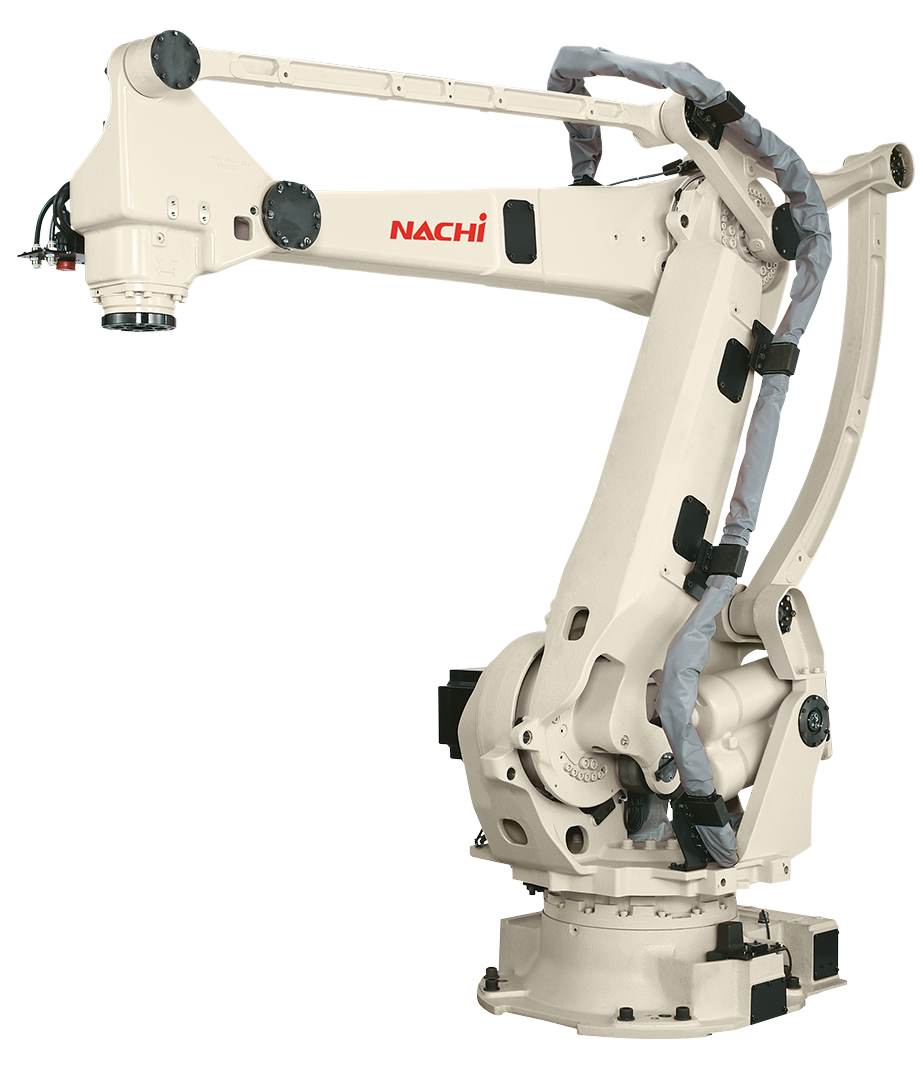

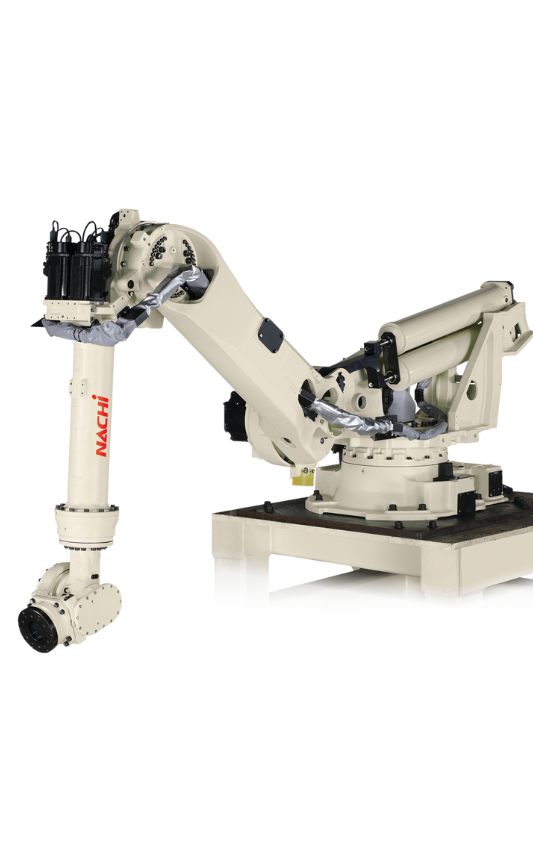

LP130F
LP180
LP210
Palletizing Robots
| Reach | 3210mm |
| Payload | 130kg |
| Axes | 4 |
| Repeatability | ±0.3mm |
| Reach | 3210mm |
| Payload | 180kg |
| Axes | 4 |
| Repeatability | ±0.4mm |
| Reach | 3210mm |
| Payload | 210kg |
| Axes | 4 |
| Repeatability | ±0.4mm |

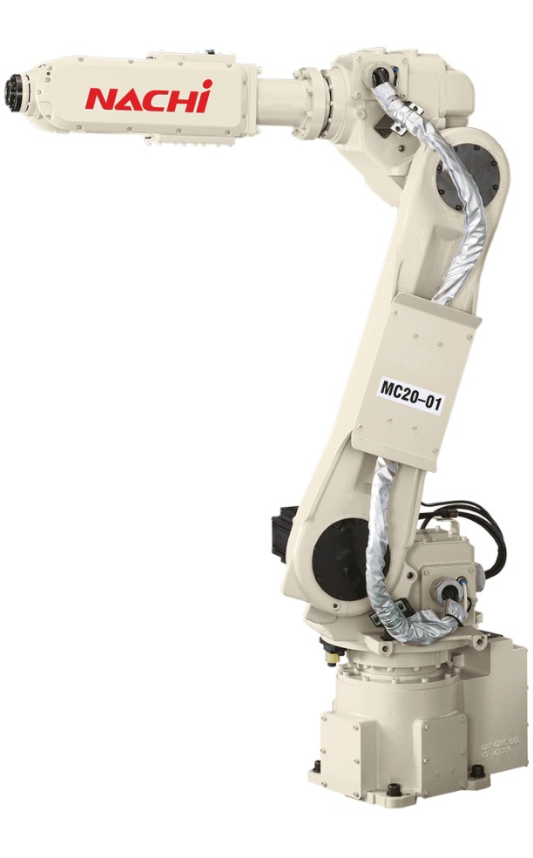

MC20
Medium Payload Robots
| Reach | 1722mm |
| Payload | 20kg |
| Axes | 6 |
| Repeatability | ±0.06mm |
MC280L
MC350

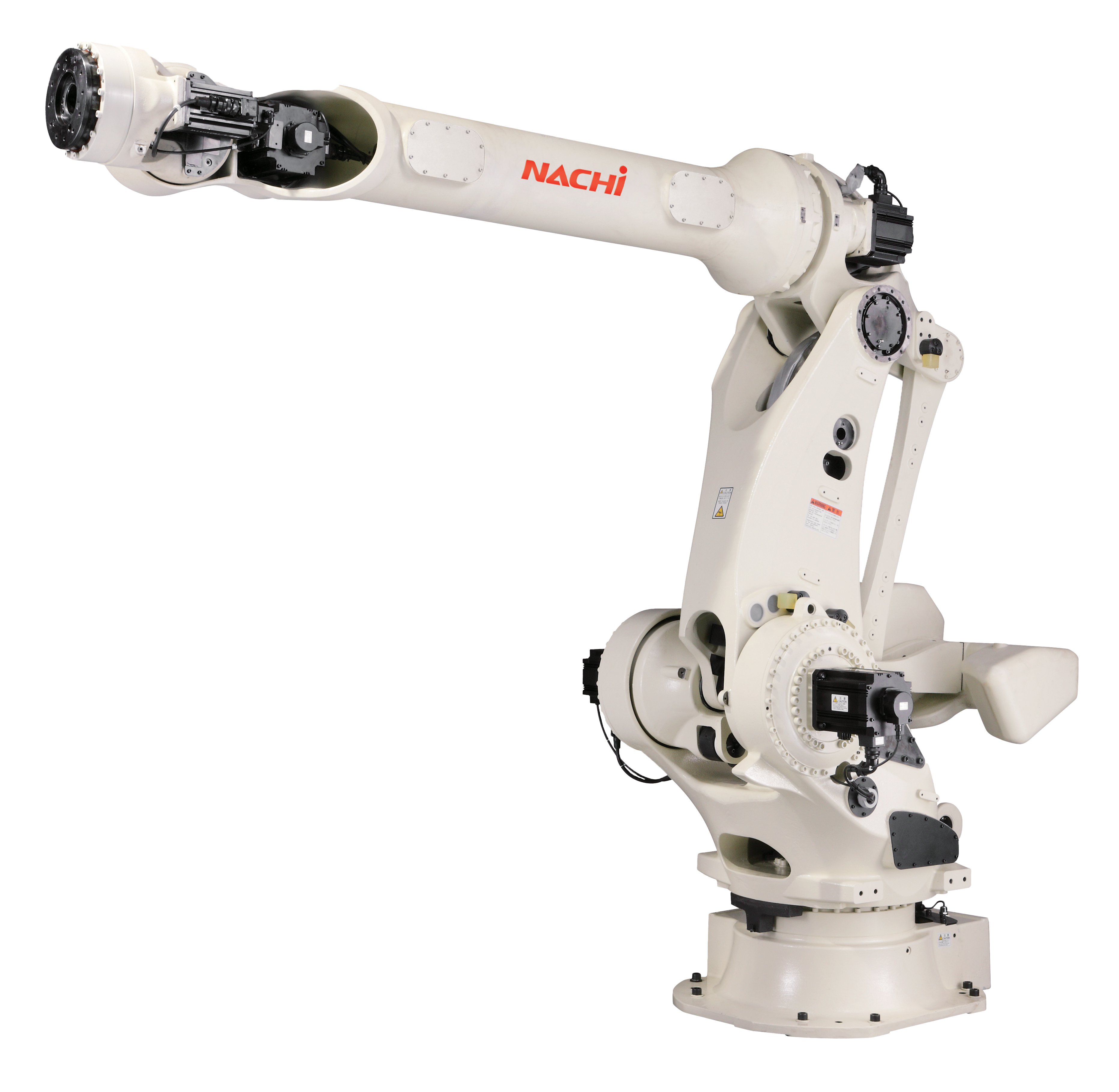

MC400L
Heavy Payload Robots
| Reach | 3101mm |
| Payload | 280kg |
| Axes | 6 |
| Repeatability | ±0.2mm |
| Reach | 2771mm |
| Payload | 350kg |
| Axes | 6 |
| Repeatability | ±0.2mm |
| Reach | 3756mm |
| Payload | 400kg |
| Axes | 6 |
| Repeatability | ±0.3mm |

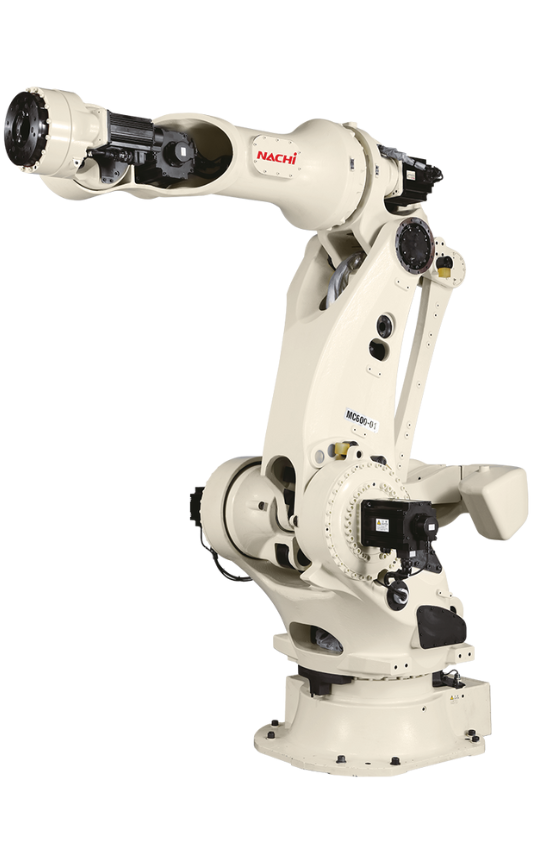

MC600

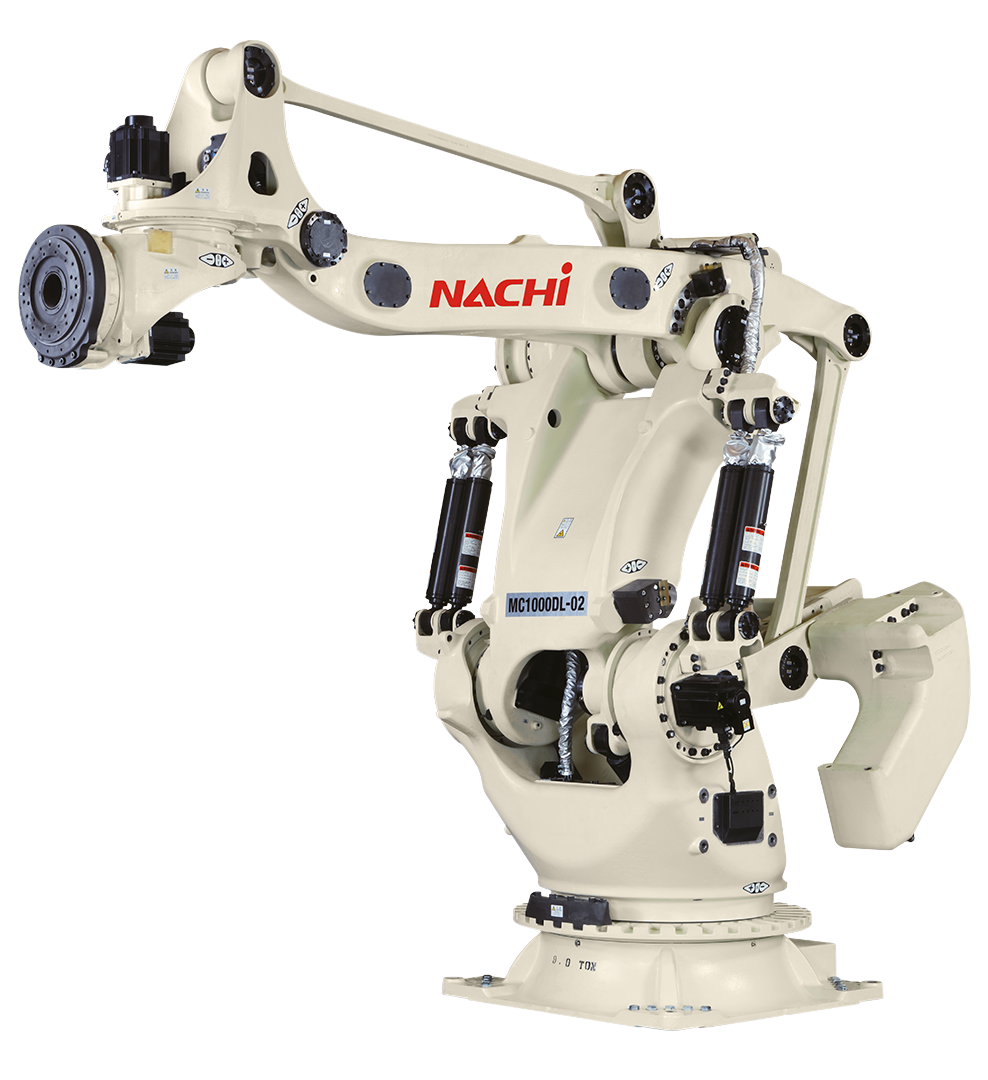

MC1000DL
| Reach | 2890mm |
| Payload | 600kg |
| Axes | 6 |
| Repeatability | ±0.3mm |
| Reach | 3972mm |
| Payload | 1000kg |
| Axes | 6 |
| Repeatability | ±0.3mm |

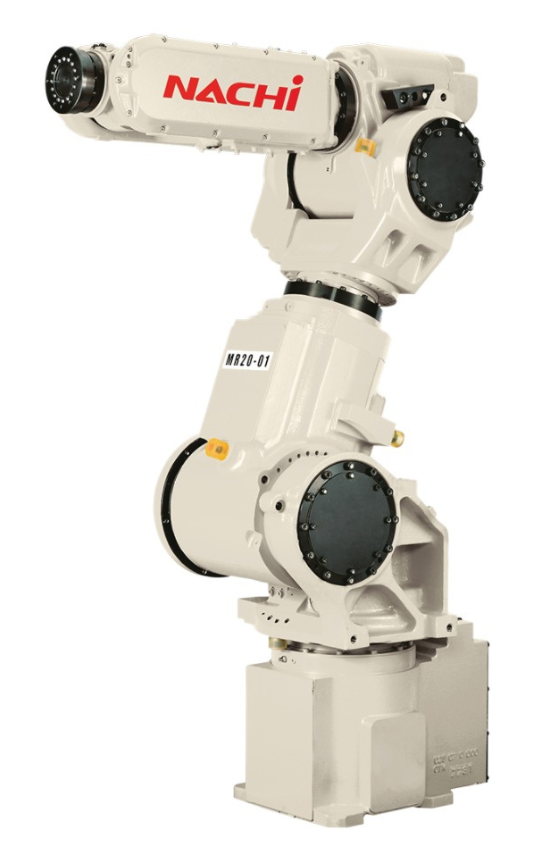

MR20
MR20L

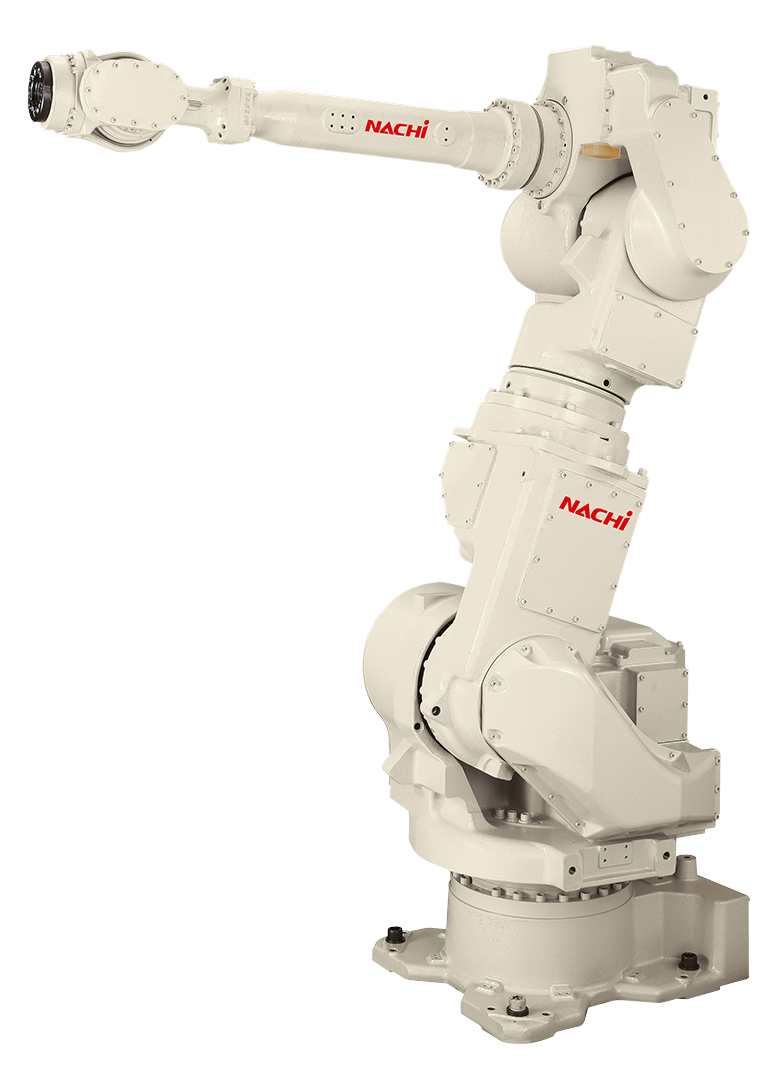

MR35
MR50
| Reach | 1260mm |
| Payload | 20kg |
| Axes | 7 |
| Repeatability | ±0.06mm |
| Reach | 1398mm |
| Payload | 20kg |
| Axes | 7 |
| Repeatability | ±0.06mm |
| Reach | 2050mm |
| Payload | 35kg |
| Axes | 7 |
| Repeatability | ±0.07mm |
| Reach | 2050mm |
| Payload | 50kg |
| Axes | 7 |
| Repeatability | ±0.07mm |

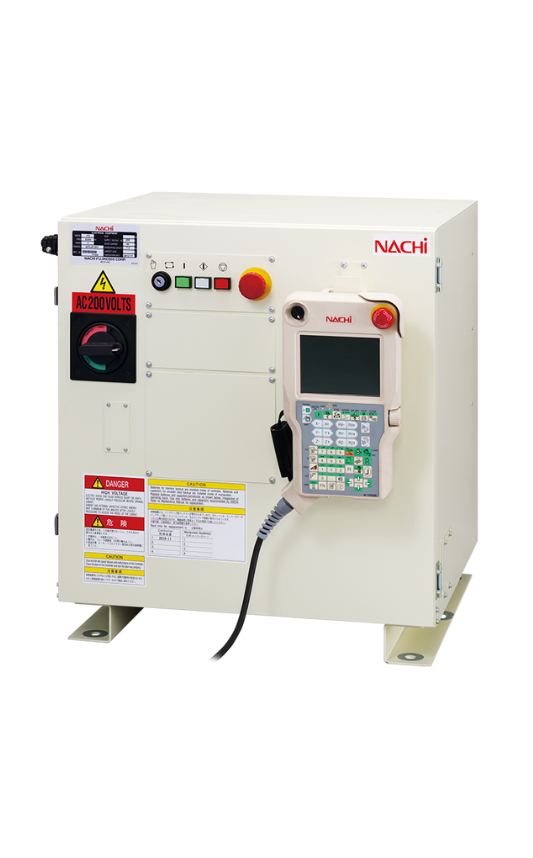

Robot Controller Models
FD11 Controller
FD18 Controller

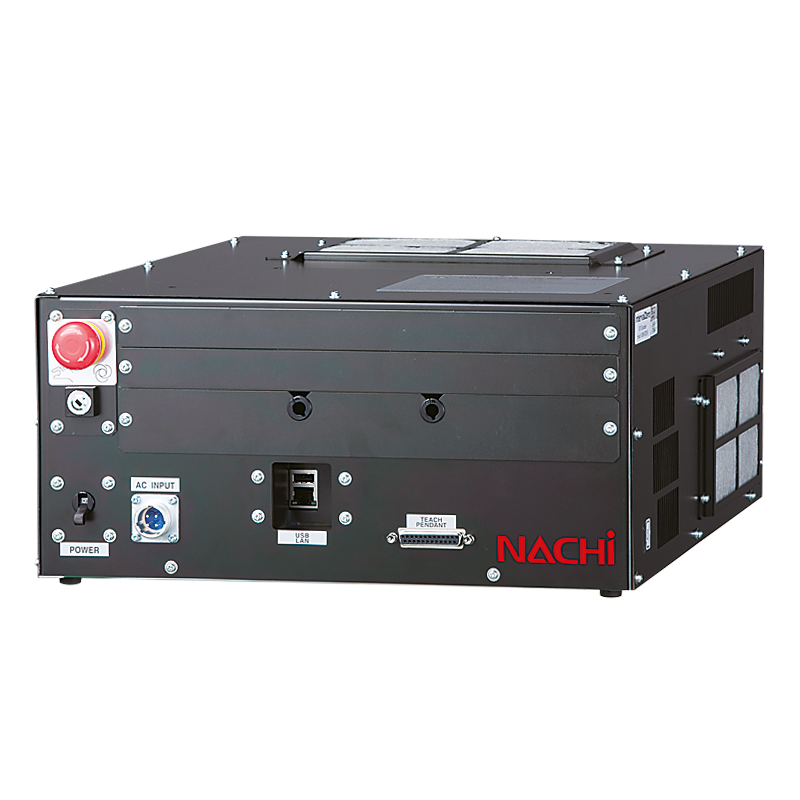

CFD Controller

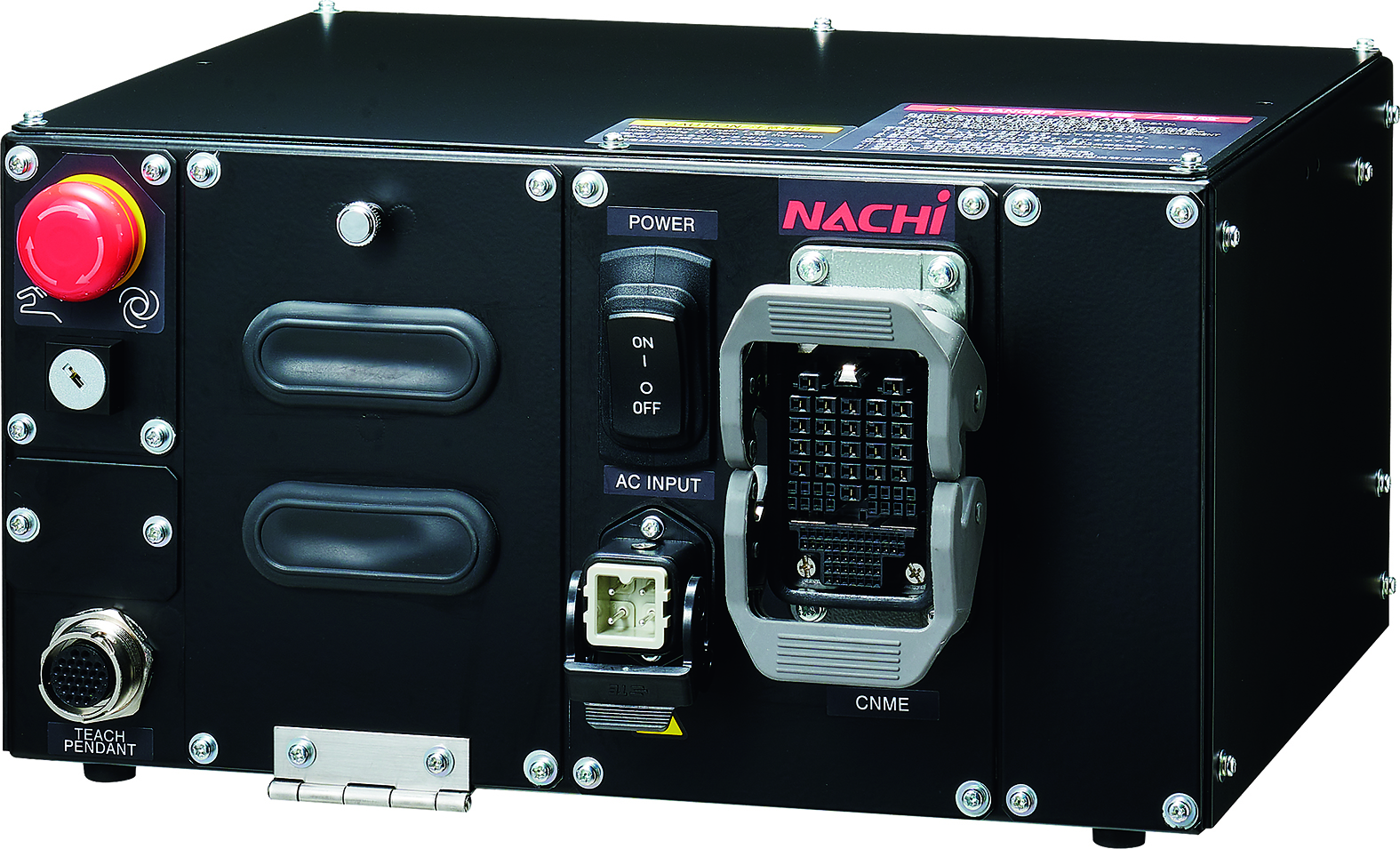

CFDS Controller
| AC 200/220/380/400/420/440/460/ 480/580/600 +/-10% 3-Phase 50/60Hz |
| Dimensions(mm): 580W x 542D x 1240H |
| 3φ 200-230VAC, 50/60Hz, D grounding, breaker 40A, max. leakage 100mA |
| Dimensions(mm): 300W x 600D x 530H |
| AC200-230V +/-10% 2-Phase or 3-Phase 50/60Hz |
| Dimensions(mm): 369W x 490D x 173H |
| AC200V – 230V +/- 10%, 50/60Hz, D grounding |
| Dimensions(mm): 310W x 250D x 160H |
CCZ Controller

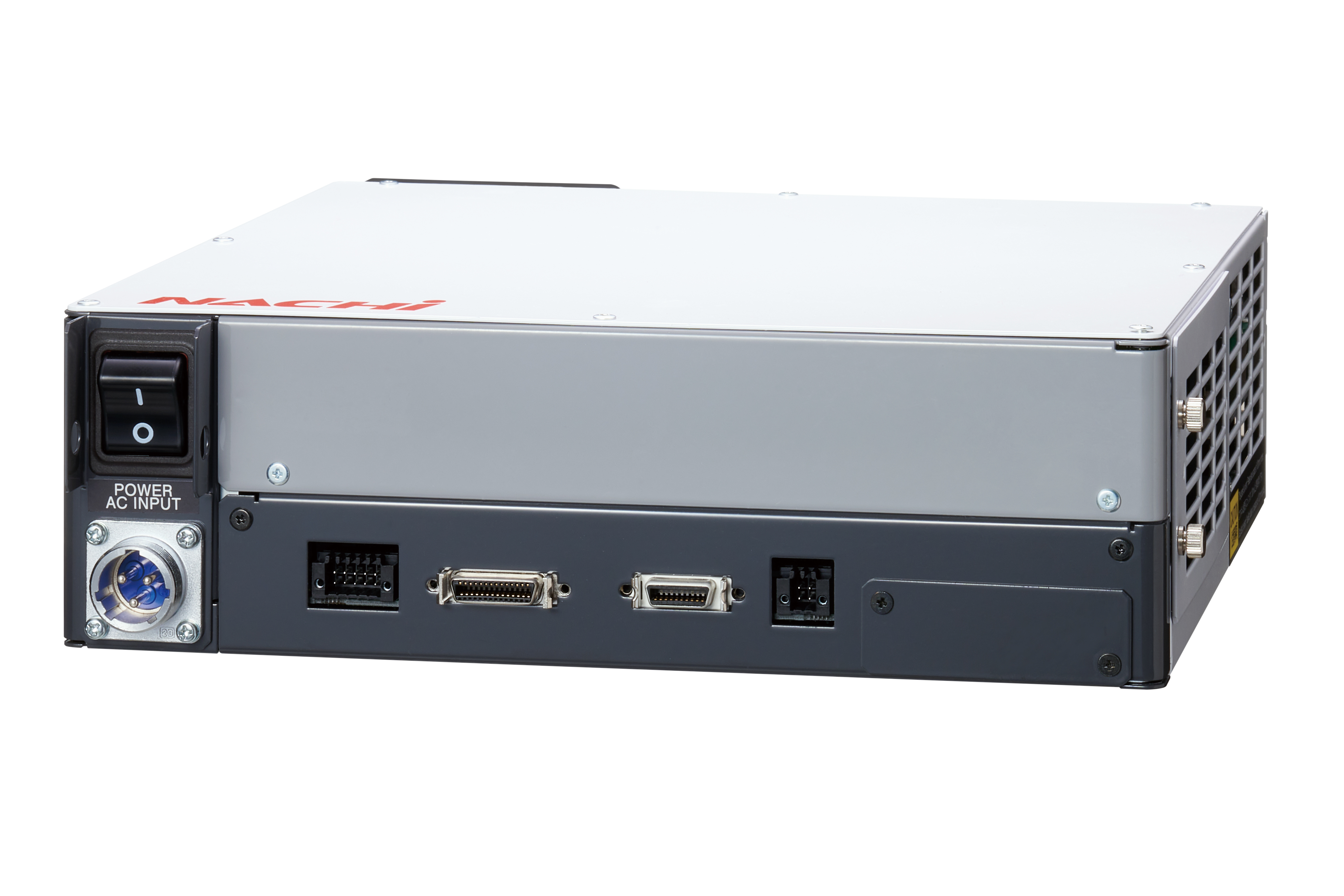

CFDQ Controller
| AC200-230V +/- 10% Single Phase 50/60Hz |
| Dimensions (mm): 380W x 460D x 260H |
| AC200V – 230V +/- 10%, 50/60Hz, D grounding |
| Dimensions (mm): 270W x 270D x 82.9H |
