Description

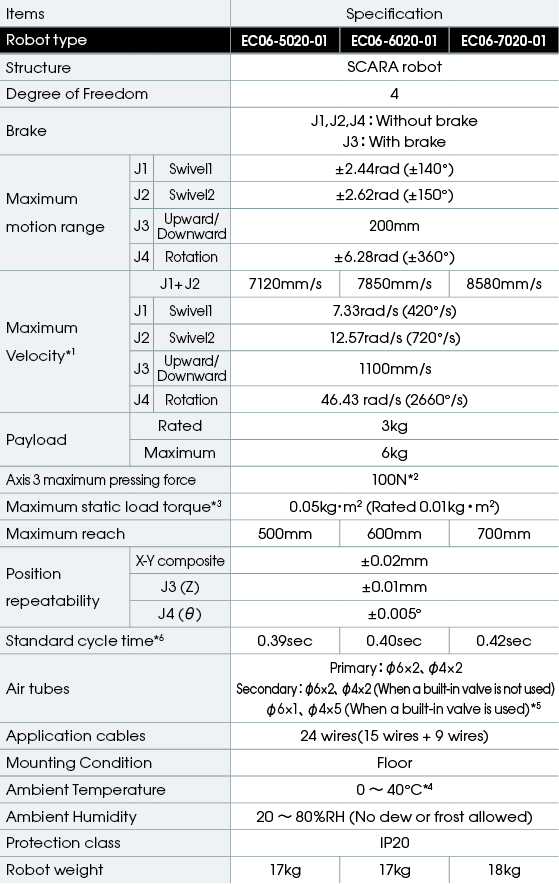

EC06 Basic Specifications

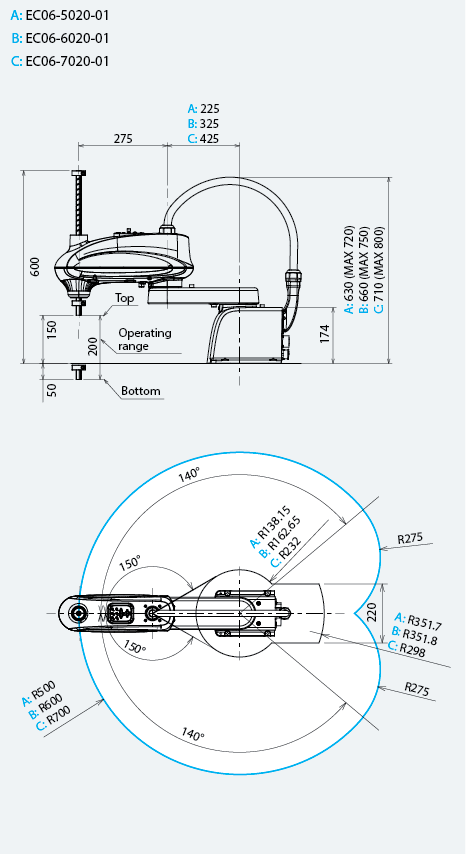

Dimensions and operating range

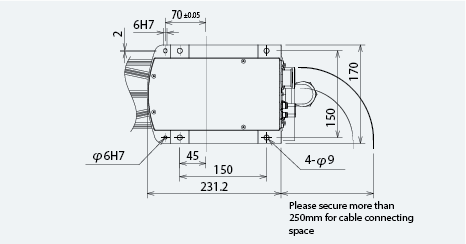

Robot Base Dimensions

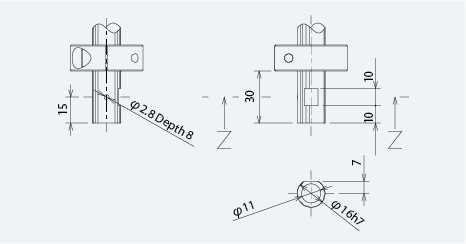

Tool Installing Part Dimensions
EC06
The EC06 series are simple structure robots with high-speed, high precision that meet for applications such as assembling, handling, and so on. Maximum reach can be selected from 3 types: 500mm, 600mm, 700mm. The tip axis is a hollow structure, therefore, tube/hose routing from the robot to the tool is simple. Complex construction is significantly reduced as well.
EC06 Brochure____________________________________
Additional information
| Weight | 18 kg |
|---|---|
| Reach | 500, 600, 700 |
| Payload | 3, 6 |
| Application | Machine Tending, Material Handling, Palletizing, Dispensing |
| Mount | Cleanroom, Floor, Tabletop, Wallmount, Invert/Ceiling Mount |
