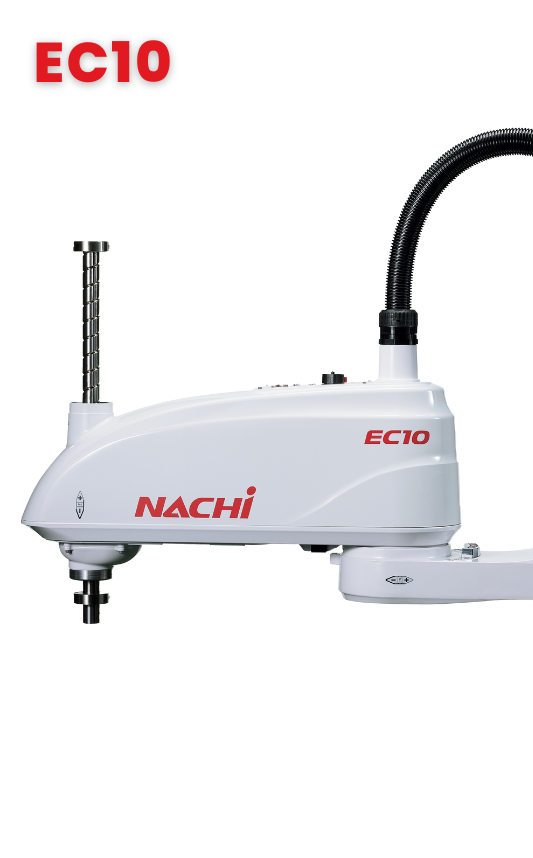

EC10

The EC10 is built to handle increasing workpiece weight with a rated payload of 5kg, maximum capacity of 10kg, and up to 12kg under conditional applications. Designed for extended reach, this model offers 800mm or 1,000mm arm lengths, providing greater flexibility for a wide range of automation tasks.

For vertical motion, the selectable stroke of 200mm or 300mm allows optimized integration into production layouts. The hollow wrist design simplifies cable and hose routing through the robot arm, reducing interference, improving durability, and minimizing equipment footprint.

Engineered for precision, efficiency, and adaptability, this robot is an ideal solution for assembly, material handling, and general automation needs.

EC10 Brochure

____________________________________

Category:

Description

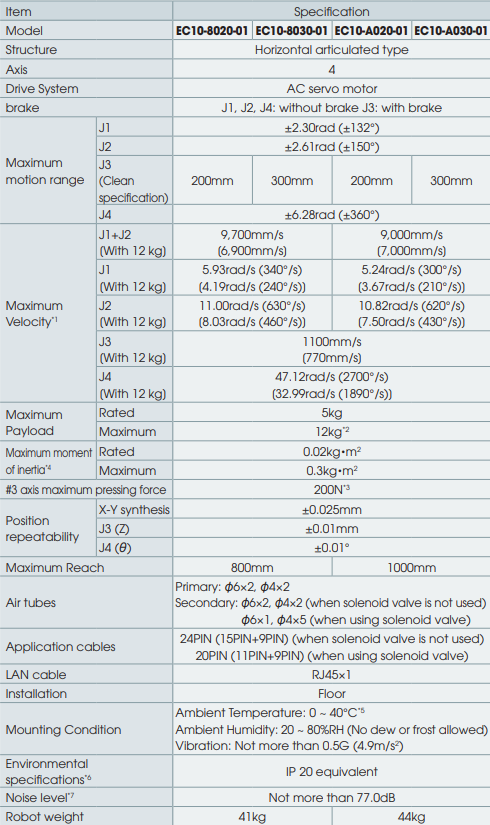

EC10 Basic Specifications

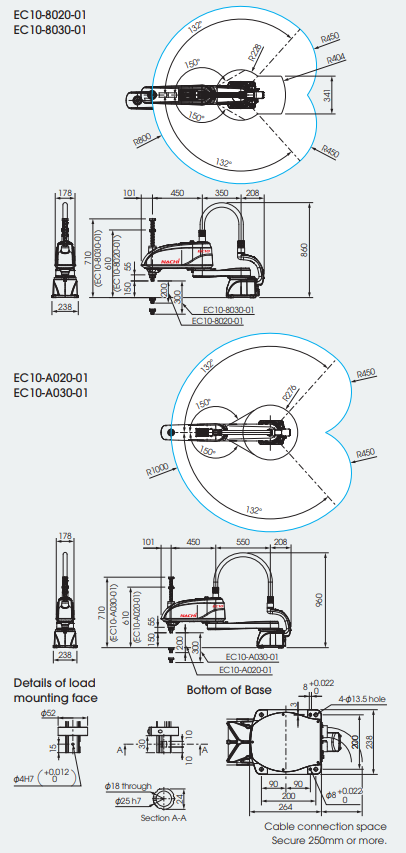

Dimensions and operating range

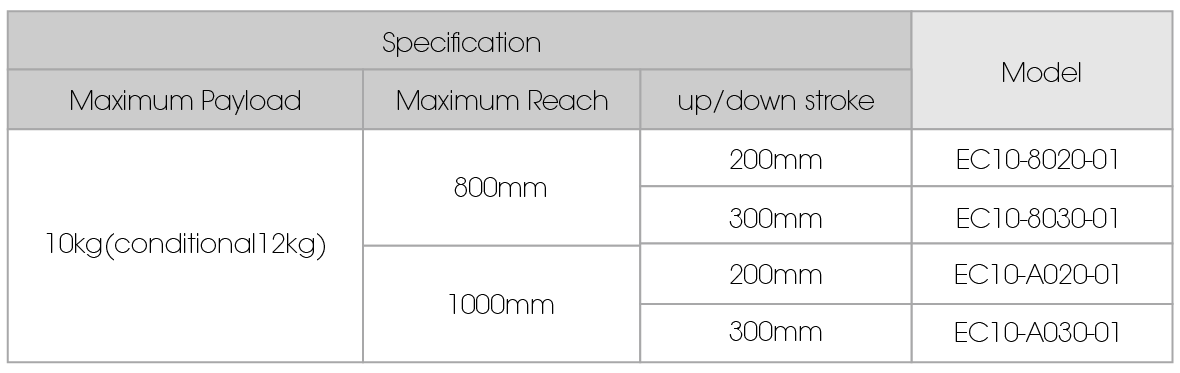

Compare 4 Robot Models by Reach and Vertical Stroke


Can choose from Maximum Reach 800/1,000mm, Vertical axis length 200/300mm. Rated 5kg, Maximum 10kg, conditional 12kg to accommodate increased workpiece weight.

Hollow Wrist


The hollow shaft design streamlines wiring from the robot body to connected tools, reducing interference with peripheral equipment and enabling a more compact system layout.



Application Examples

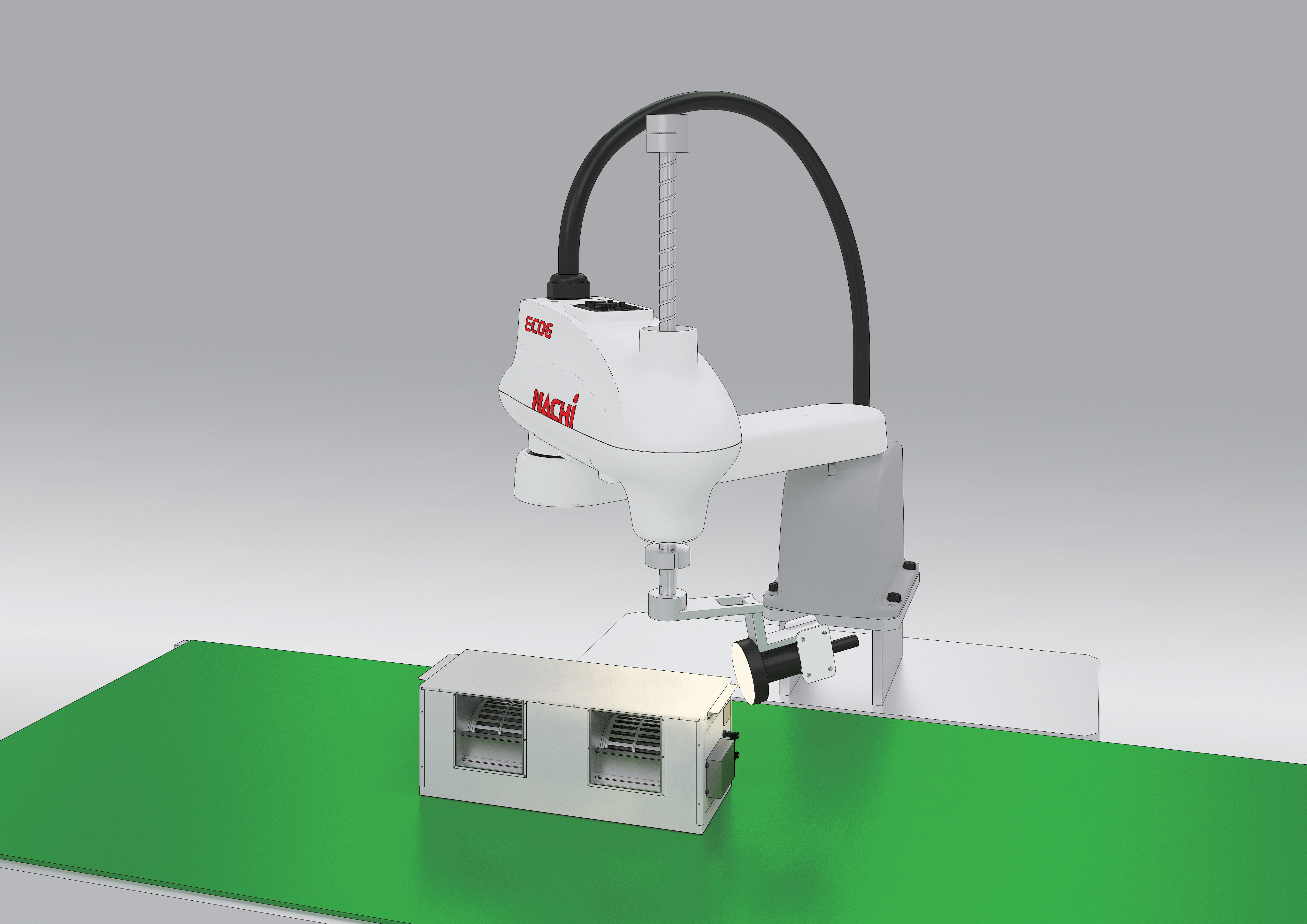

Inspection

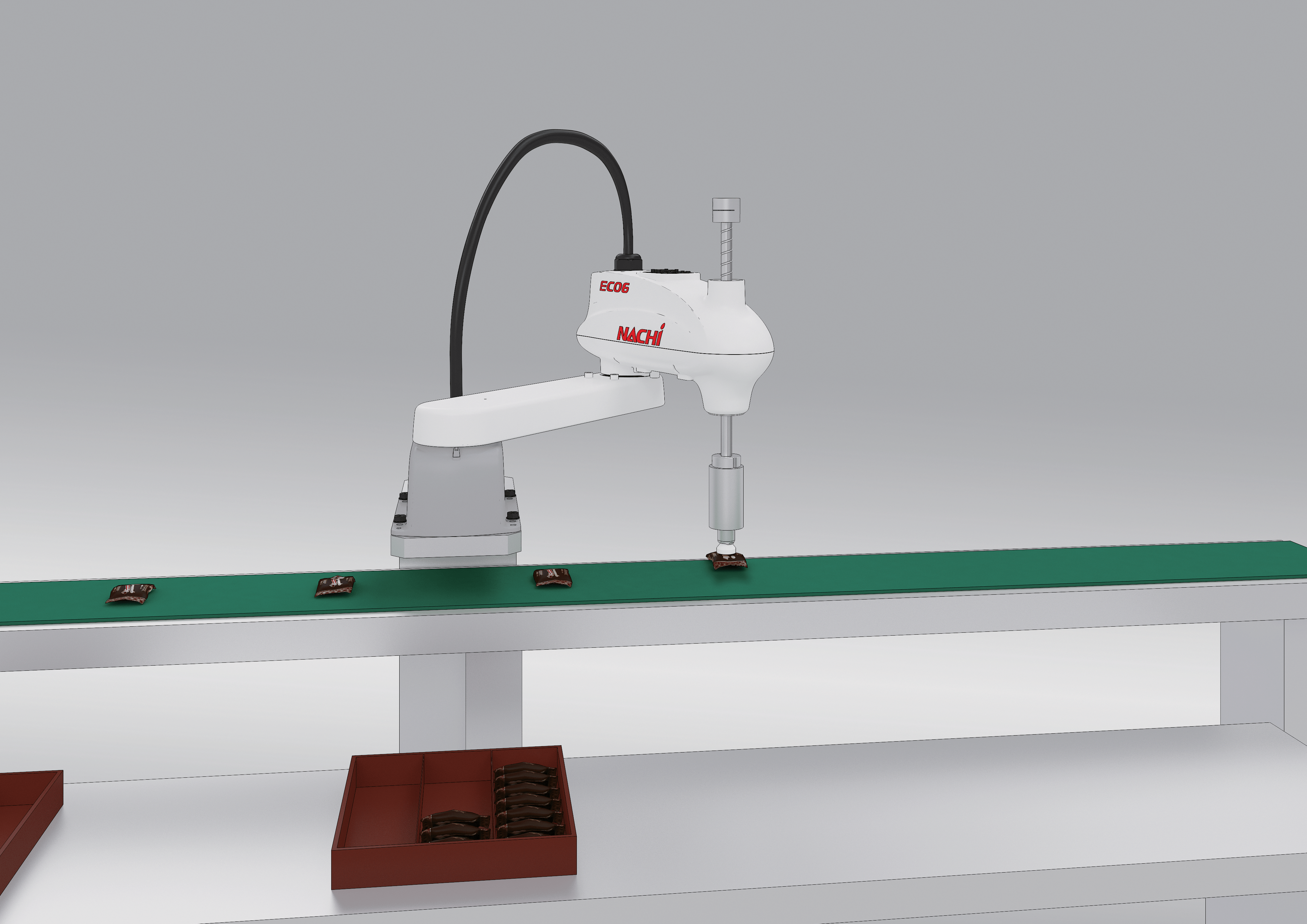

Packing

Additional information

Weight 18 kg
Reach

1000, 800

Payload

12, 5

Application

Machine Tending, Material Handling, Palletizing, Dispensing

Mount

Cleanroom, Floor, Tabletop, Wallmount, Invert/Ceiling Mount
