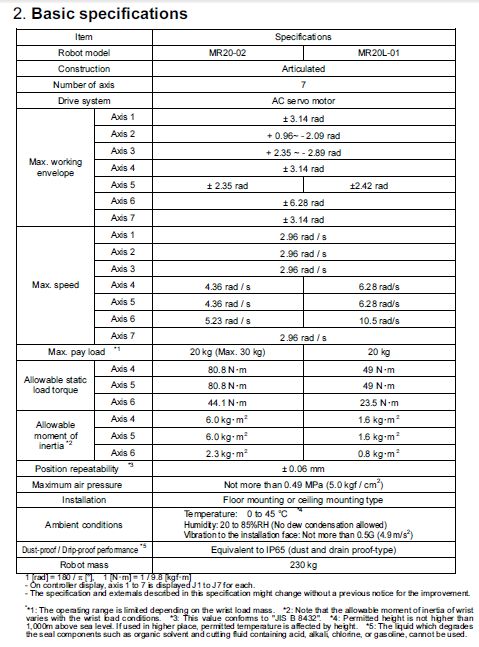

MR20L General Specifications

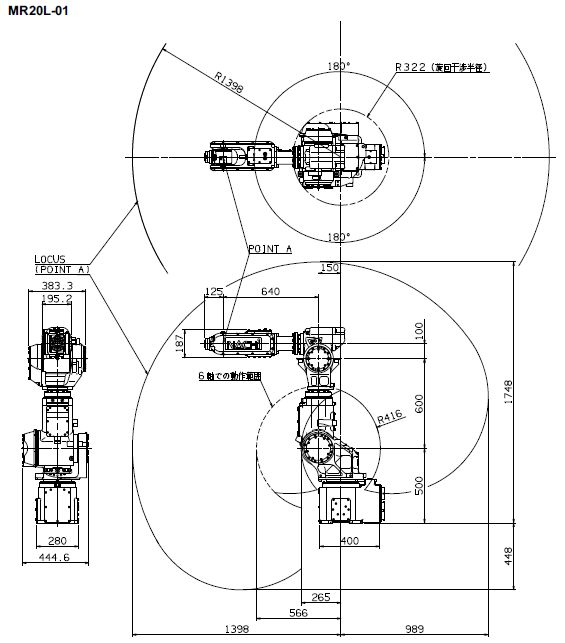

Robot Dimensions and Working Envelope

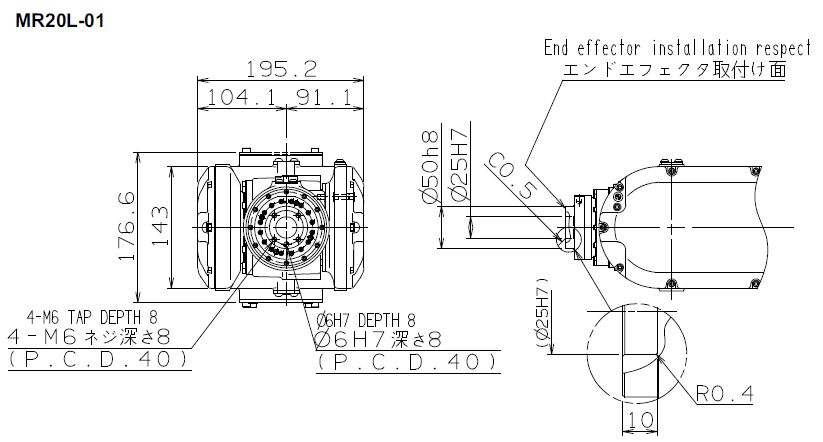

Faceplate Hole Pattern for Mounting End of Arm Tooling

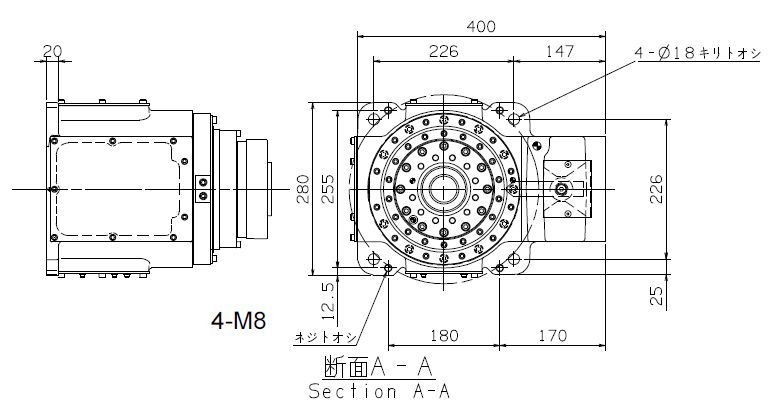

Baseplate Mounting Information and Robot Footprint
Unique 7-Axis design destinguishes the MR series from other robotic products by providing increased freedom of motion and achieving optimum robot posture at all times. The 7th axis allows the MR series to avoid singularities by providing multiple arm posture solutions for a single working TCP. The innovative design structure offered by the MR series makes it excellent for machine tending applications allowing the robot to be placed to the side of the machine, providing an open front for machine maintenance. The MR20L provides an impressive 1398mm of reach at 20Kg payload. Floor and Invert mounting solutions are available to maximize work cell flexibility and reduce the automation floor space required. MR series robots are also capable of working cooperatively to perform complex and precise assembly tasks boasting an impressive ± 0.06mm repeatability. When combined with a robot slider the MR series can tend many machines using a single robot, drastically reducing automation costs. To see examples of the MR series robots in use please visit our YouTube Channel.
____________________________________Brochure (PDF) Detailed Technical Specification (PDF)
Machine Tending, Material Handling
Floor, Invert/Ceiling Mount
