Nearly 20 years ago, Nachi was the pioneer of servo gun technology for spot welding.  Today, Nachi continues to lead the industry in development of advanced robotic spot welding solutions focused on making higher quality welds more quickly than in the past.  Specifically designed for the fast paced automotive industry, SRA series robots will dramatically reduce cycle times, significantly improve productivity, and achieve cost reductions…achieve more with less robots! In your business “Time is Money”, make the most of your money with the fastest robots available. Compare the Nachi SRA series against any competitor to see how much valuable time and money you can save with an SRA robot.

SRA series robots and their FD controllers are ideally suited to spot welding applications.  The SRA robots are highly rigid and weight less, providing faster motion and less vibration.  Advanced motion control from the FD controller provides top acceleration thereby shortening cycle-times.  The FD also has 4th generation servo gun control software enabling higher motor speeds while maintaining gentle electrode contact to parts, optimizing spot welding performance.  Finally, Nachi together with our welding partners, Obara and Art Hikari, are pushing the envelope in resistance welding with lightweight modular guns and spot welding solutions for aluminum parts.


Brochure (PDF) Detailed Technical Specification (PDF)


Benefits & Features:

  • Improved Productivity
    • High speed gun motor control for fast open / close
    • High acceleration SRA robot for quickest movement between welds SRA robots are the world’s fastest in their payload class
  •       Extensive product line
    •       SRA comes in various payloads from 100kg to 240kg
    •       Standard floor mount models, invert mount model, long reach models over 3 meters.
    •       New hollow arm series for internal dress of spot welding utilities provides extra protection and minimized stress for utility lines (cooling water, weld power, signals, servo gun cables)
  • Improved Weld Quality
    • Pressure calibration up to 10 points for more accurate pressure through the spot welding range
    • Nachi’s integrated spot weld timer AC version available now, DC version from Jan-2014.  Full programming from the robot teach pendant, weld results storage for traceability, full integration for fastest possible communication.
  •  Spot weld solutions for aluminum parts
    • Long tip life between dress cycles (>400 welds)
  • EXCLUSIVE robot mounted SEAM WELDER
    • Reduce part weight with the same strength using continuous welds
    • Reduce the amount of high strength steel, lowering costs

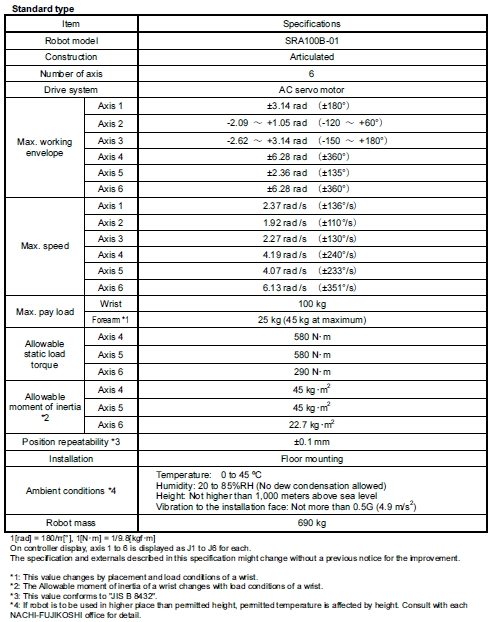

SRA100B General Specifications

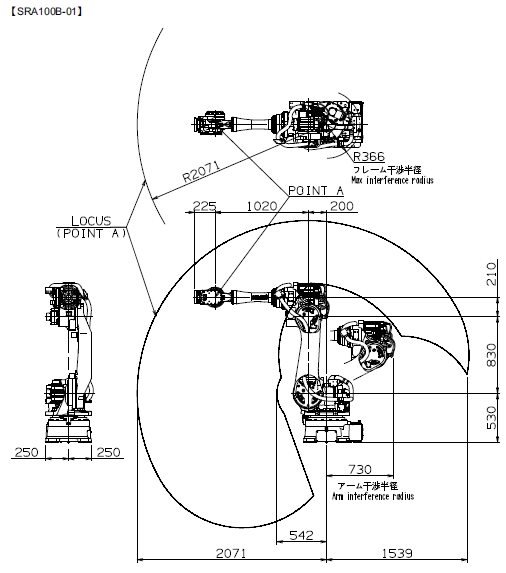

Robot Dimensions and Working Envelope

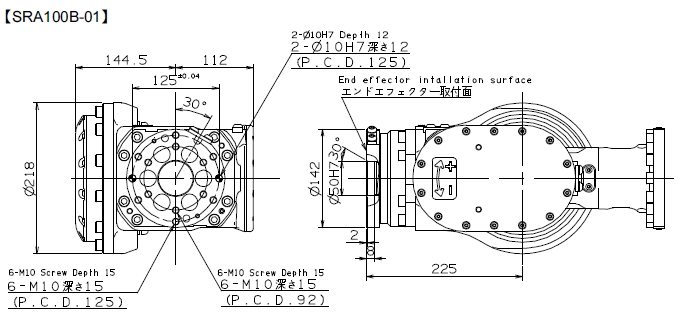

 Faceplate Hole Pattern for Mounting End of Arm Tooling

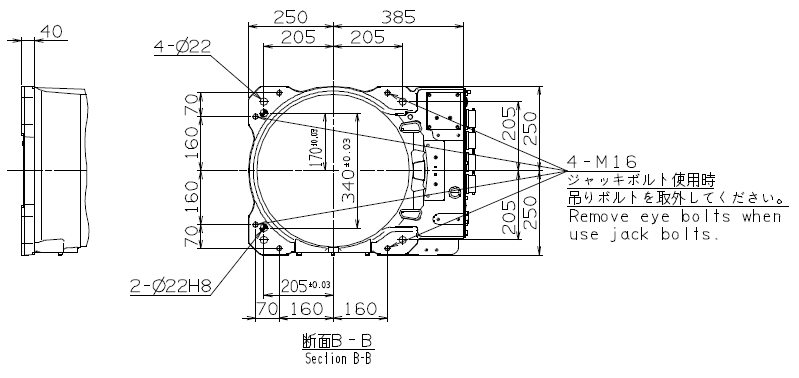

Baseplate Mounting Information and Robot Footprint

Additional information

Weight 690 kg





Machine Tending, Material Handling, Palletizing, Spot Welding, Dispensing
