MC1000DL

The MC1000DL is specifically designed for heavy and repetitive lifting tasks up to 1000Kg capacity.  In addition to high payload capacity the MC1000DL provides an impressive work envelope to perform work on several products or machines simultaneously. Superior strength, rigidity, and reach allow the MC1000DL to excel in large scale lifting operations including car bodies, engines, foundry components, and many other heavy industrial products.  MC Heavyweight robots have been used to replace dedicated industrial elevators and transfer equipment for a small fraction of the cost while also providing the flexibility of robotic equipment.

MC1000DL Brochure
Category:

Description

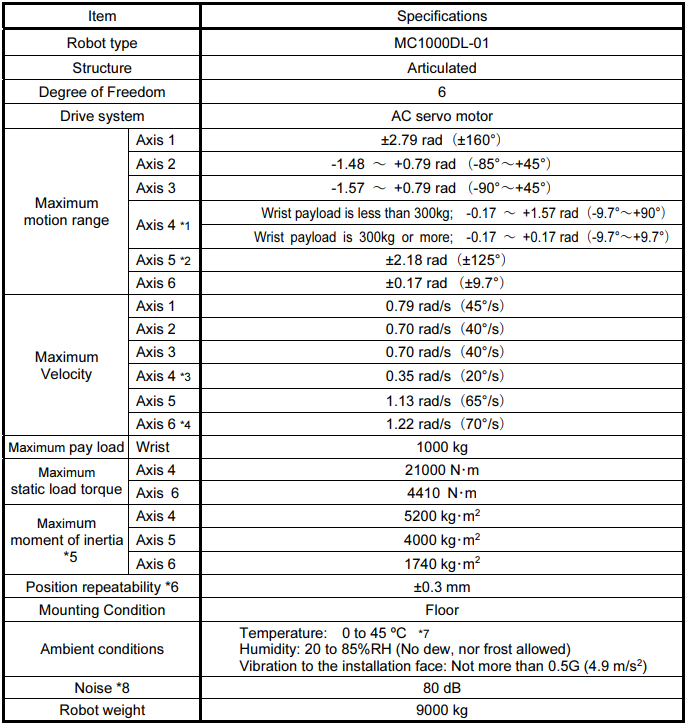

MC1000DL Specifications

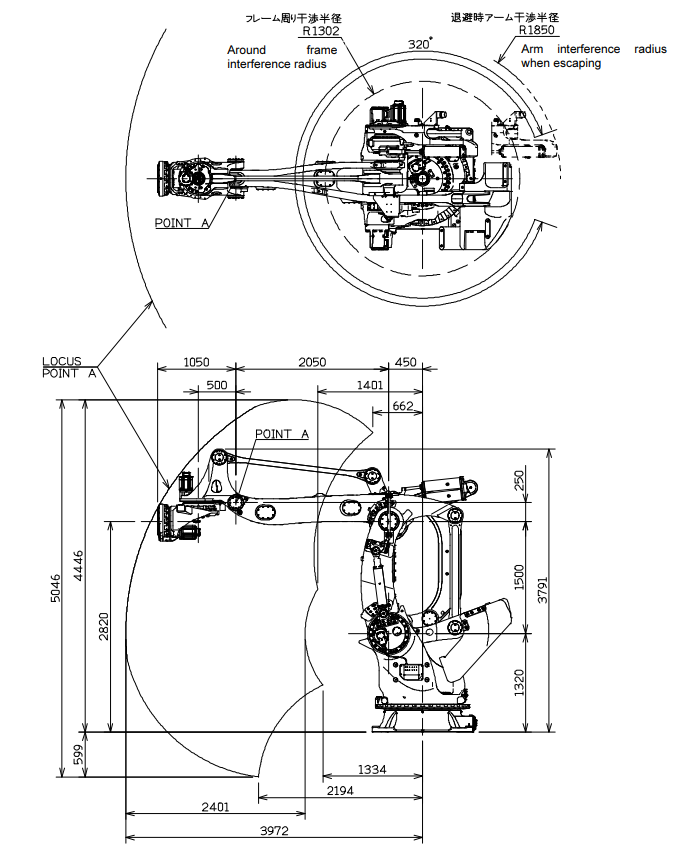

Outline dimensions and Motion range



Additional information

Weight 9000 kg
Reach

3972

Payload

1000

Application

Machine Tending, Material Handling, Spot Welding

Mount

Floor
