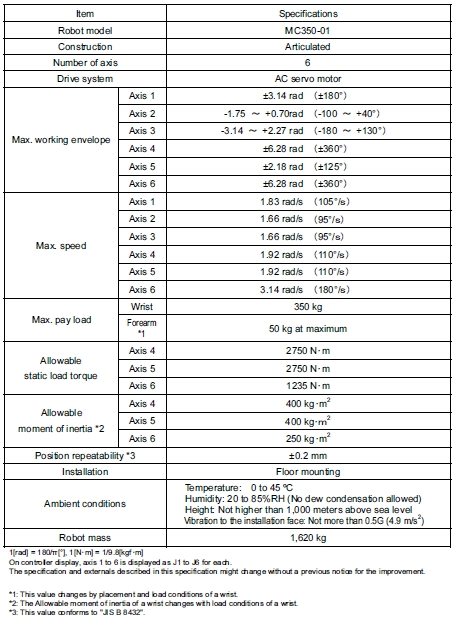

MC350 General Specifications

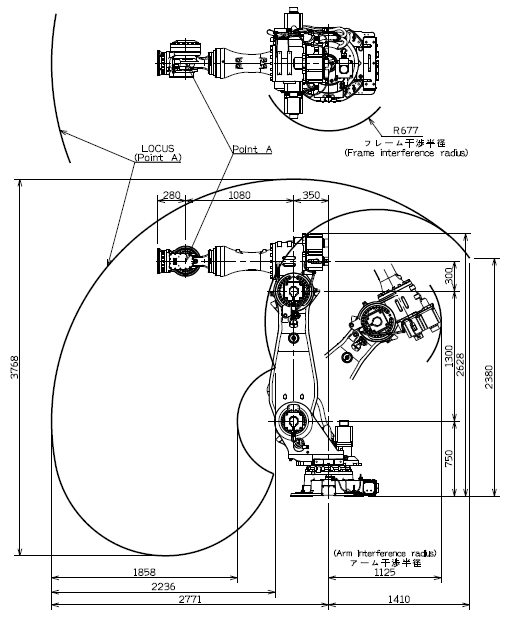

Robot Dimensions and Working Envelope

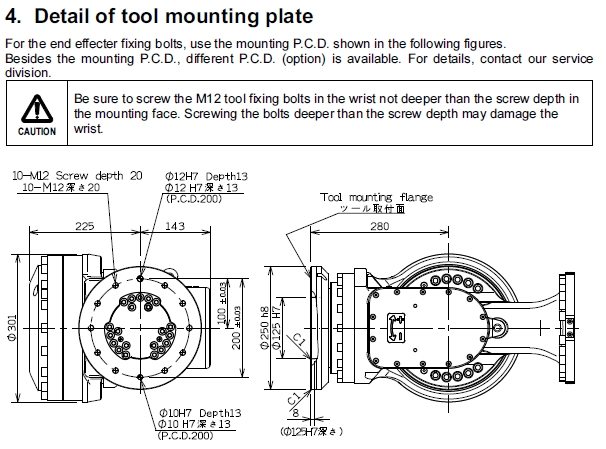

Faceplate Hole Pattern for Mounting End of Arm Tooling

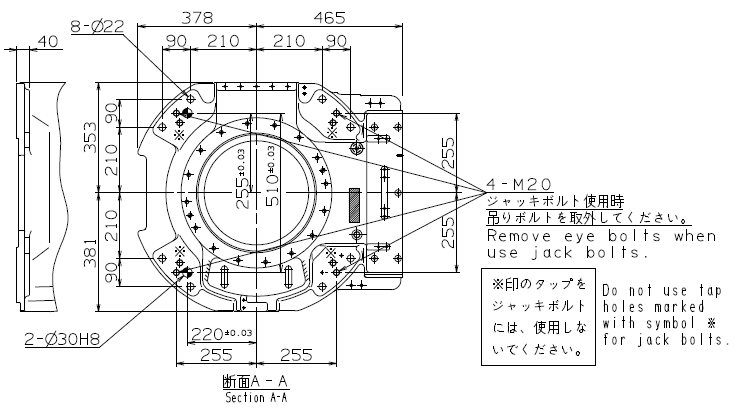

Baseplate Mounting Information and Robot Footprint
The MC350 is specifically designed for heavy and repetitive lifting tasks up to 350Kg capacity. In addition to high payload capacity the MC350 provides an extensive 2771mm work envelope to perform work on several products or machines simultaneously. Superior strength, regidity, and reach allow allow the MC350 to excel in large scale lifting operations including car bodies, engines, foundry components, and many other heavy industrial products. MC Heavyweight robots have been used across North America to replace dedicated industrial elevators and transfer equipment for a small fraction of the cost while also providing the flexibility of robotic equipment. If you need to move heavy or large objects with precision look no further than the Nachi MC350.
____________________________________Brochure (PDF) Detailed Technical Specification (PDF)
Machine Tending, Material Handling, Palletizing, Spot Welding
