MC12S General Specifications

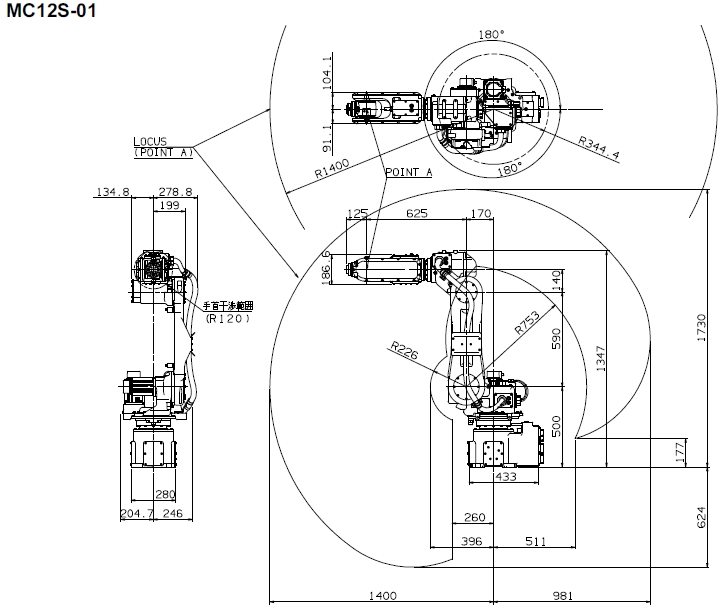

Robot Dimensions and Working Envelope
Flaceplate Hole Pattern for Mounting End of Arm Tooling
Baseplate Mounting Information and Robot Footprint
The Nachi MC12S is a high speed and compact version of the MC20 excellent for use in work cells with limited space. The MC12S robot achieves even higher speeds than its larger counterparts in the MC series due to its reduced size. A slim base minimizes required floor space and provides floor, wall, and ceiling mounting options to further extend application possibilites and reduce work cell size. The MC12S model offers a reach of 1400mm and provides point repeatability of ± 0.06mm. Compact arm design reduces interference with peripheral equipment and is also IP65 compliant. Internal air supply lines and signal cabling support numerous applications, optional internal pneumatic valves eliminate the need for shoulder-mounted valve packages.
____________________________________Brochure (PDF) Detailed Technical Specification (PDF)
Machine Tending, Material Handling, Palletizing, Dispensing
Floor, Wallmount, Invert/Ceiling Mount
