MC400L

The MC400L is specifically designed for heavy and repetitive lifting tasks up to 400Kg capacity.  In addition to high payload capacity the MC400L provides an impressive 3756mm (12.3 Foot) work envelope to perform work on several products or machines simultaneously.  Superior strength, rigidity, and reach allow the MC400L to excel in large scale lifting operations including car bodies, engines, foundry components, and many other heavy industrial products.  MC Heavyweight robots have been used across North America to replace dedicated industrial elevators and transfer equipment for a small fraction of the cost while also providing the flexibility of robotic equipment.  If you need to move heavy or large objects with precision look no further than the Nachi MC400L.

____________________________________

Detailed Technical Specification (PDF)
Category:

Description

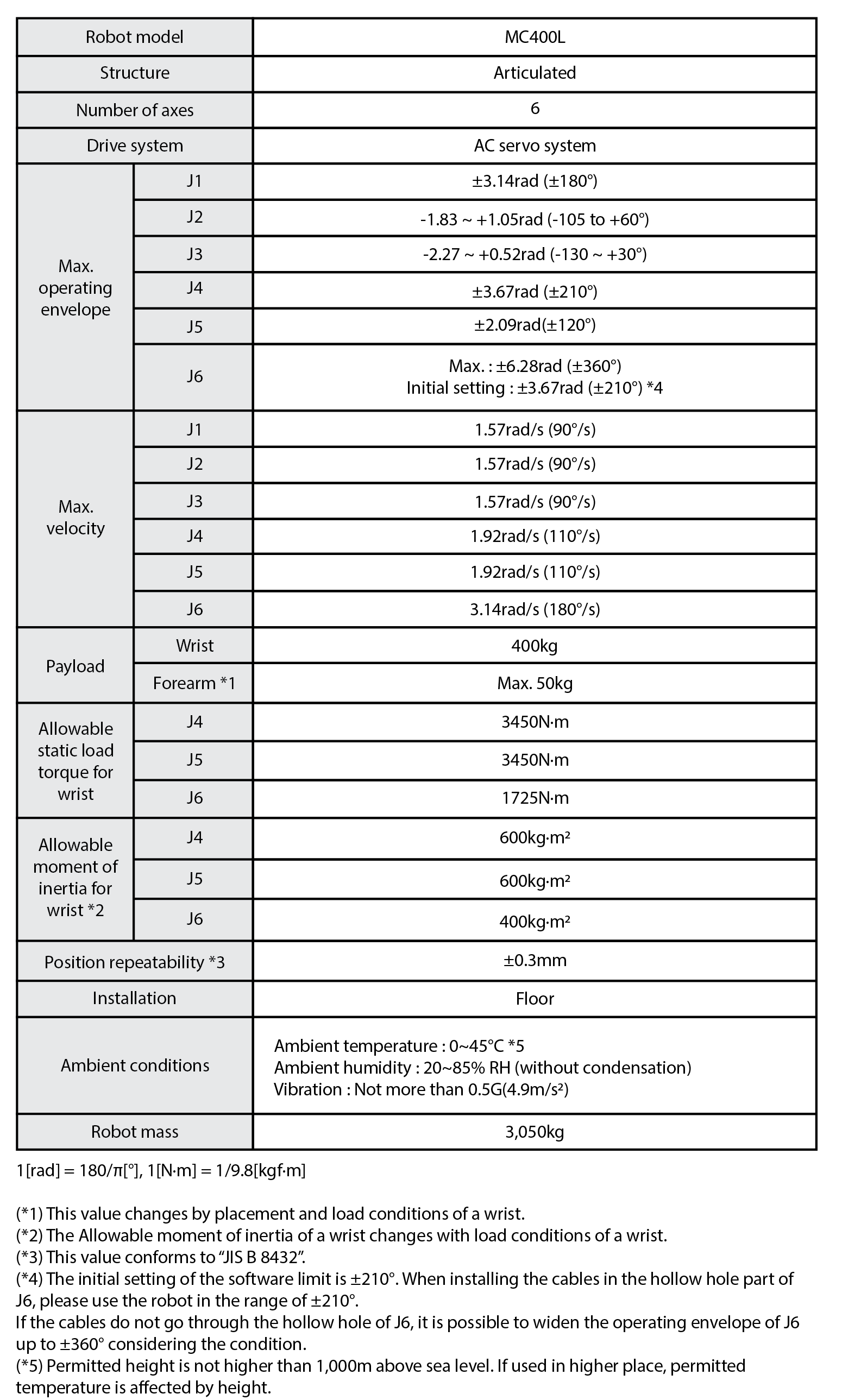

MC400L Specifications

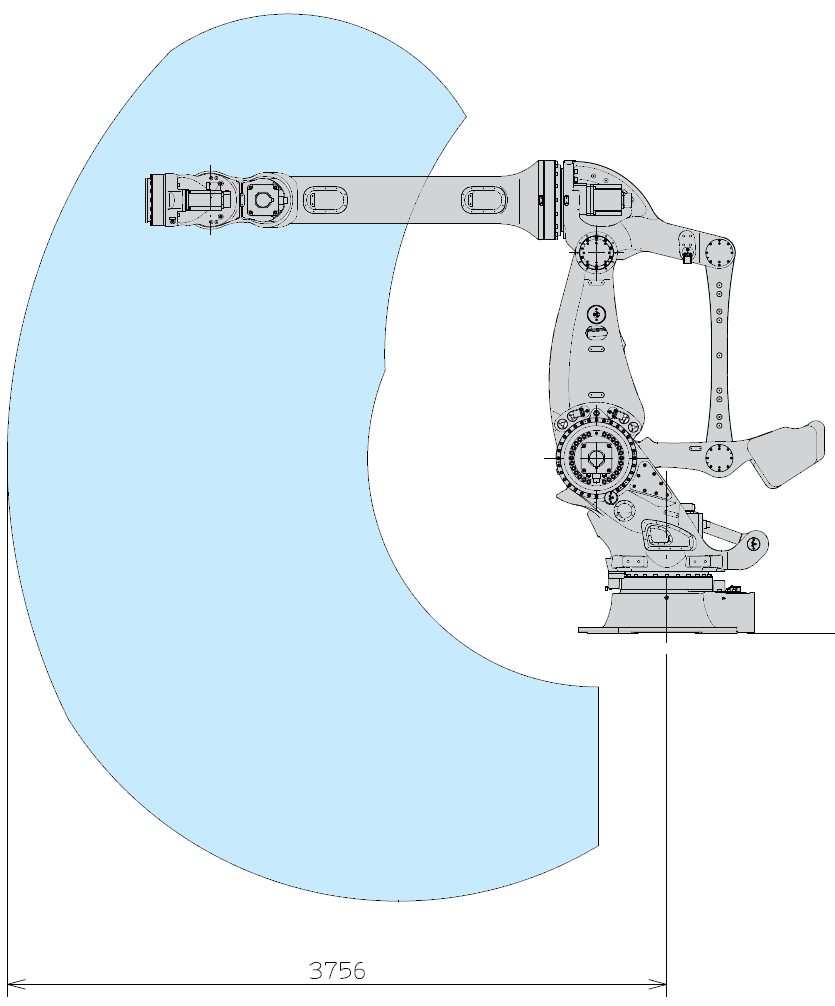

MC400L Profile & Work Envelope

Additional information

Weight 3050 kg
Reach

3756

Payload

400

Application

Machine Tending, Material Handling, Palletizing, Spot Welding

Mount

Floor
