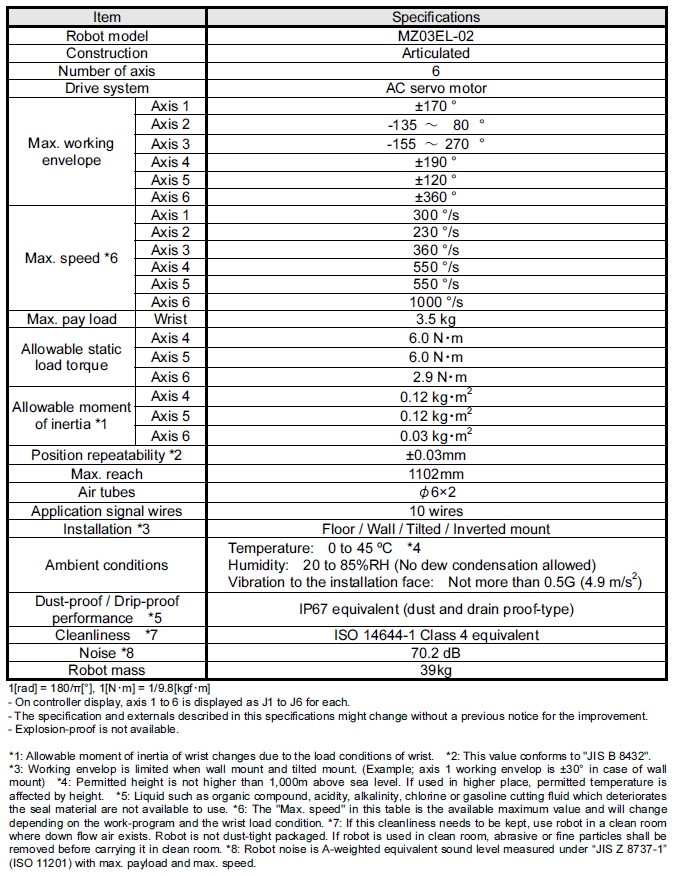

MZ03EL General Specifications

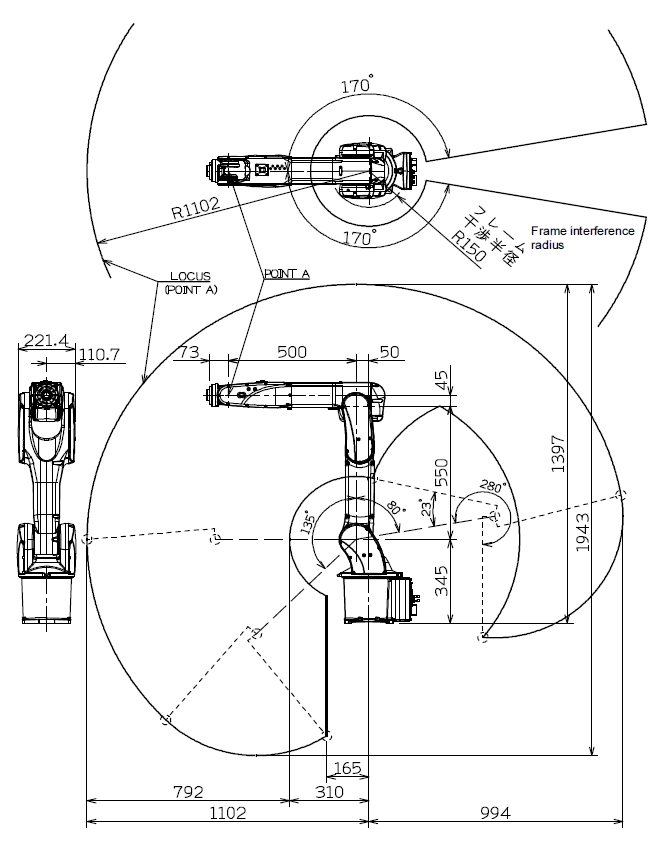

MZ03EL Robot Dimensions and Work Envelope

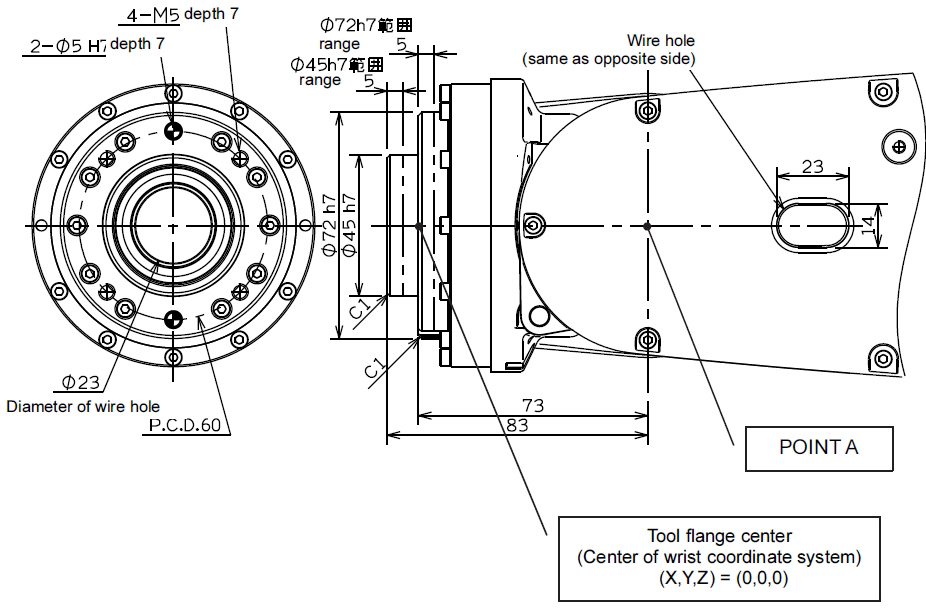

MZ03EL Faceplate Hole Pattern for Mounting End of Arm Tooling

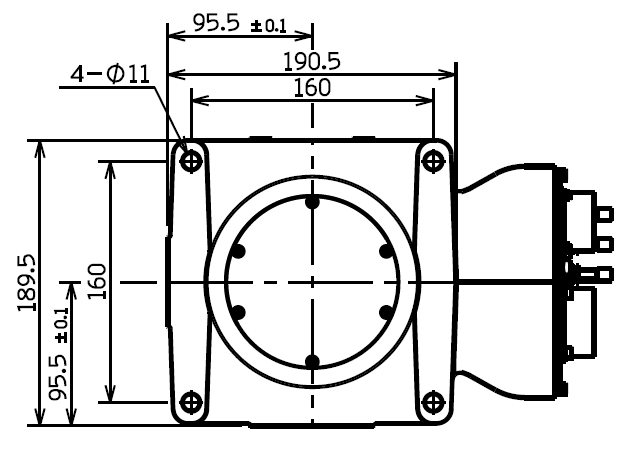

MZ03EL Baseplate Mounting Information and Robot Footprint
The new MZ Series robot arms feature ultra high-speed motion capability with advanced through-arm dress capabilities to simplify routing of hoses and cables for material handling, assembly, vision and many other applications. Boasting an IP67 rating, MZ Series robots are the fastest in class in standardized speed testing, leading all competitors’ robots. Flexible mounting solutions allow MZ Series to be floor, wall, or invert mounted to better suit customers’ needs for any given application. As the newest addition to Nachi’s comprehensive robot lineup, MZ Series robots build on the great heritage of large payload robots by providing an extremely versatile small robot with top of the line capabilities. The MZ03EL incorporates the same great features as other MZ Series robot with added reach up to 1.1 meter horizontal reach for larger work areas.
In addition to the industry leading innovative features offered by MZ Series robot arms, controller size has been significantly reduced with the introduction of the new Nachi Compact-FD (CFD) Controller. Based on its industry proven full size brother the FD11 controller, the PC sized CFD Controller features 200-230v (single phase or 3 phase), IP20 protection level and a new miniature teach pendent (miniTP). In addition to the ergonomic size offered by the CFD controller, system backups can now be created directly to USB media devices ensuring your production programs will never be compromised. The Nachi Smart Teach Pendent (SmartTP) is also available providing full color graphical touch screen robot control functionality for ultimate ease of use. Also available on MZ Series robots is a 120v control package expanding the application range even further. MZ Series robots can be installed anywhere you can plug into the wall making it an ideal solution for universities, training facilities, R&D laboratories, or anyone without access to commercial power. Application possibilities are endless and applied seamlessly with advanced Nachi Software Packages including palletizing, force sensing, vision sensing, line tracking conveyor synchronization, material handling, and many more.
____________________________________Detailed Technical Specification
Machine Tending, Material Handling, Palletizing, Dispensing
Cleanroom, Floor, Tabletop, Wallmount, Invert/Ceiling Mount
