MZ01
The Ultra-compact MZ01 Robot is Nachi’s latest high-speed 6 axis arm. Weighing only 10kg and having a max reach of 350mm, the MZ01 is perfectly suited for light payloads, minimal floor space installations, and high density layouts. 6 degrees of articulation allow the MZ01 to tackle many applications, including assembly, dispensing, soldering, and much more.
____________________________________
Brochure (PDF) Detailed Technical Specification (PDF)MZ01 General Specifications

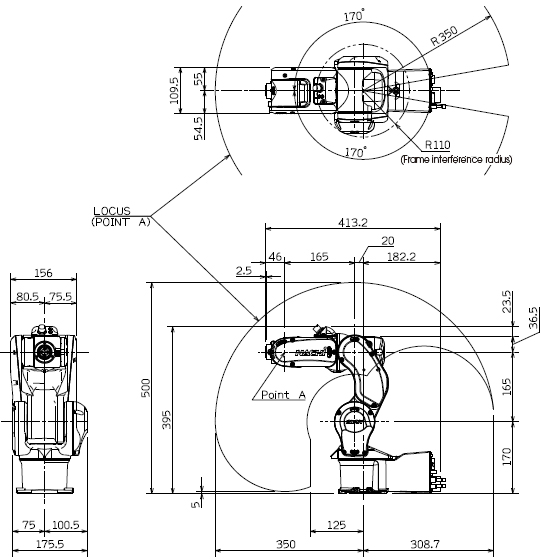

MZ01 Robot Dimensions and Working Envelope

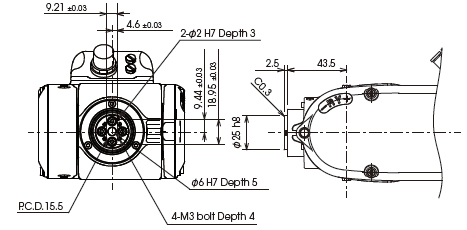

Faceplate Hole Pattern for Mounting End of Arm Tooling

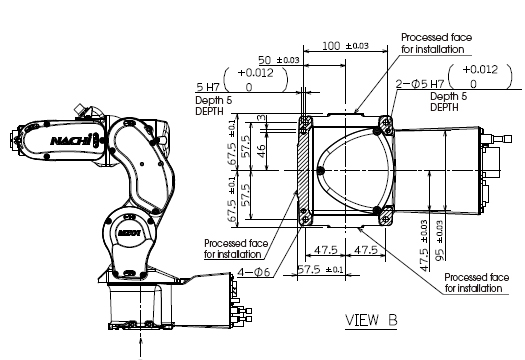

Baseplate Mounting Information and Robot Footprint
Additional information
Weight | 10 kg |
---|---|
Reach | 350 |
Payload | 1 |
Application | Machine Tending, Material Handling, Palletizing, Dispensing |
Mount | Cleanroom, Floor, Tabletop, Wallmount, Invert/Ceiling Mount |

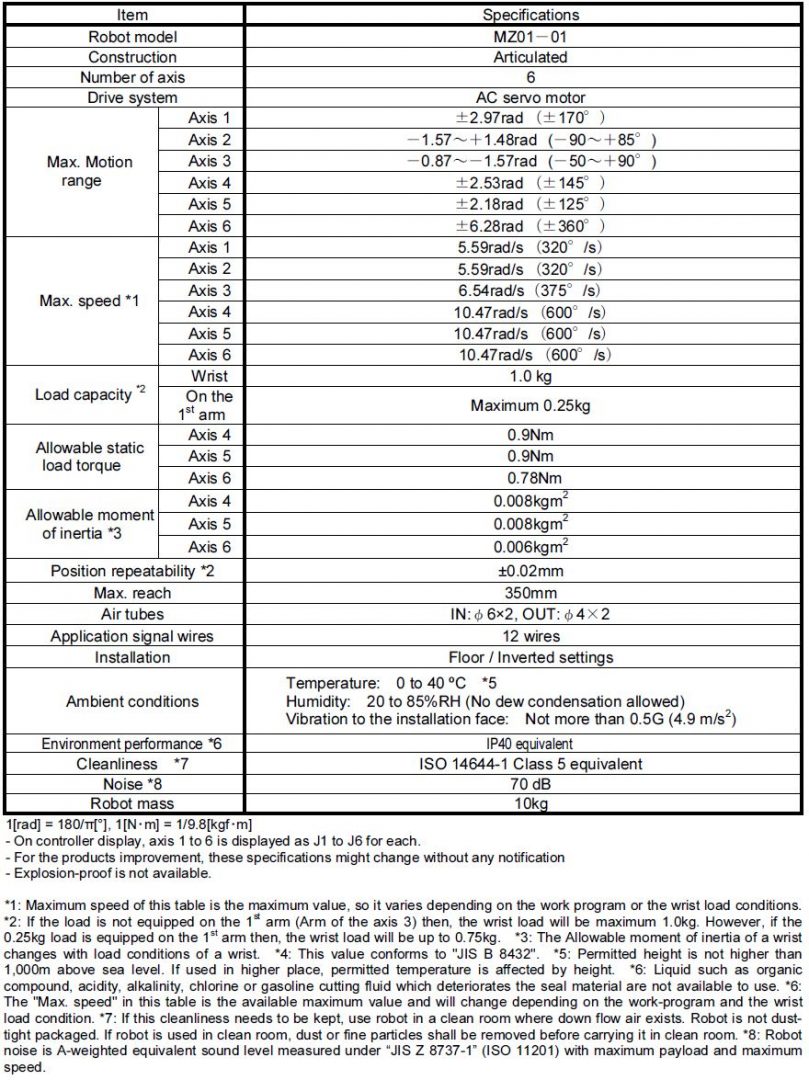

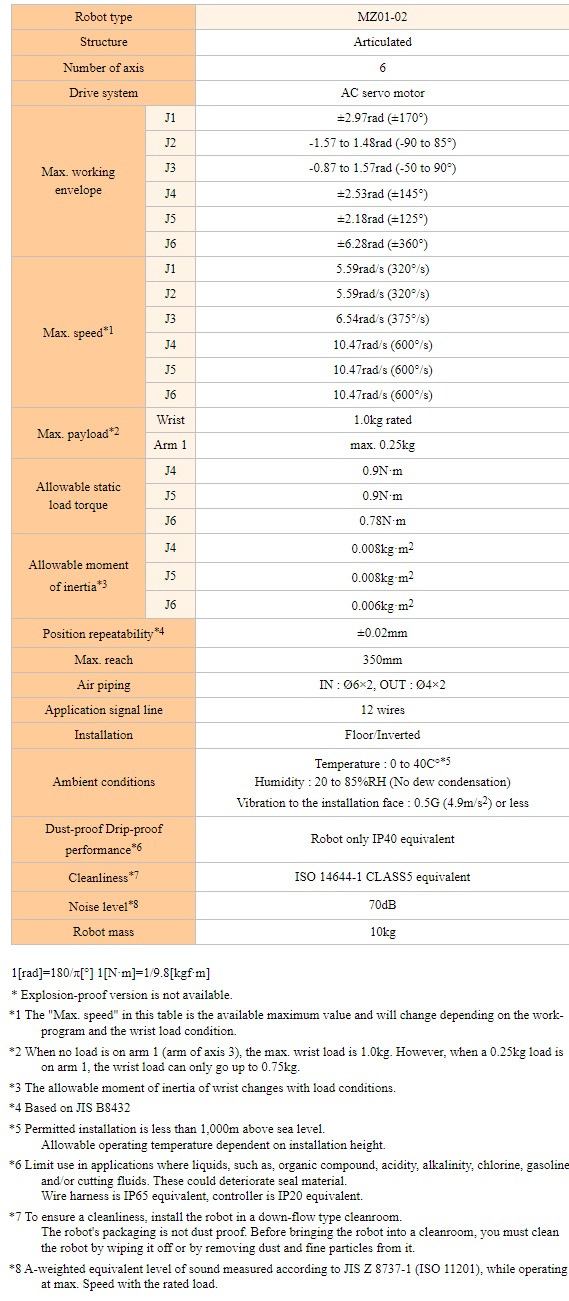

MZ01 Basic Specifications

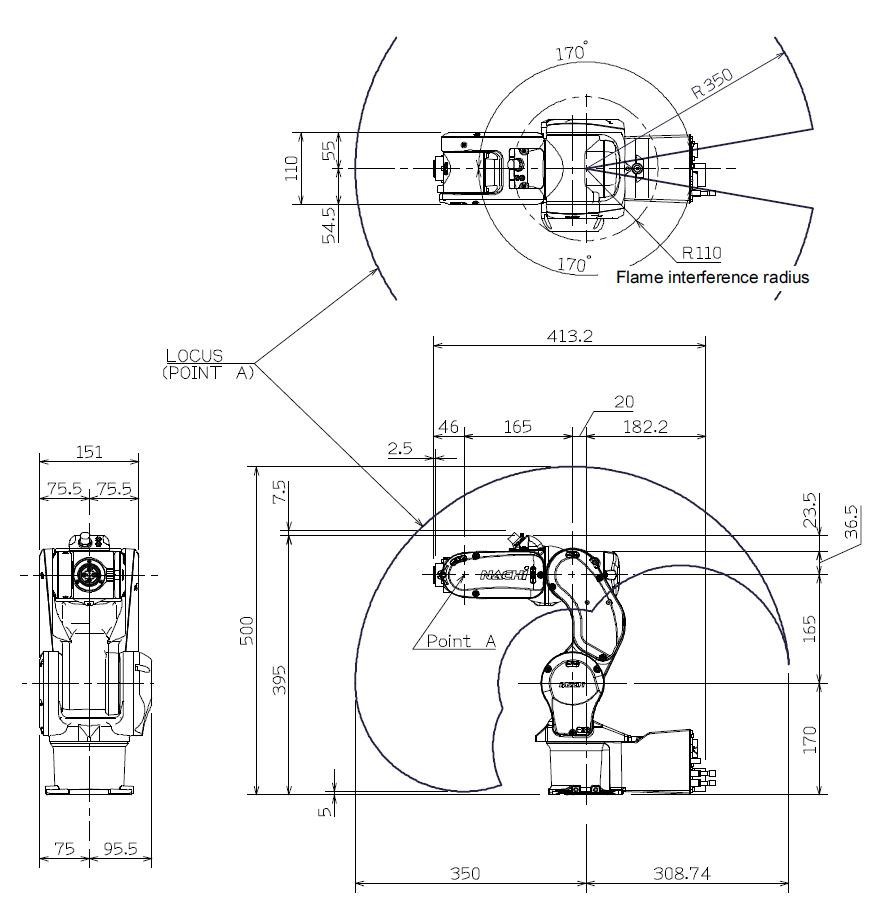

MZ01 Robot Dimensions and Working Envelope

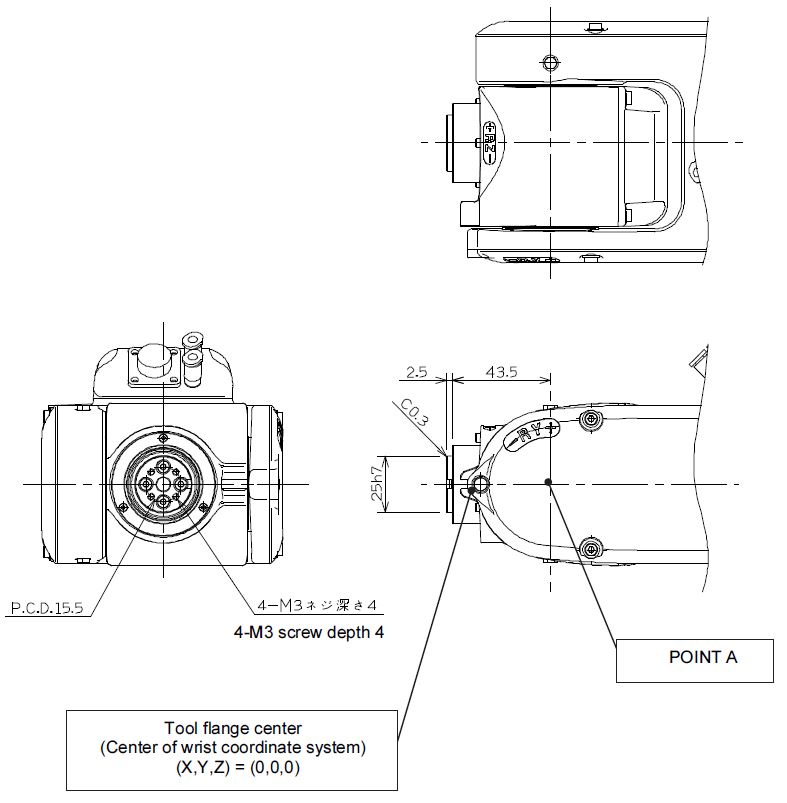

MZ01 Face Plate Dimensions
