Description
NB04L General Specifications

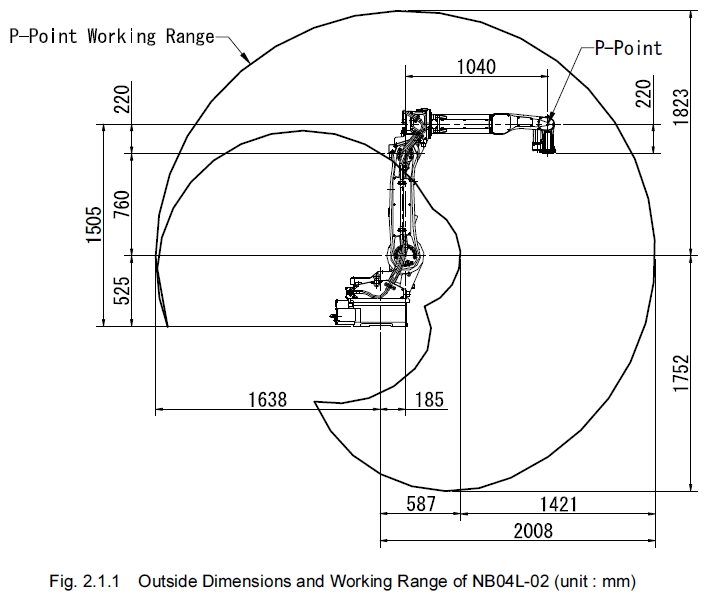

Robot Dimensions and Working Envelope

Faceplate Hole Pattern for Mounting End of Arm Tooling

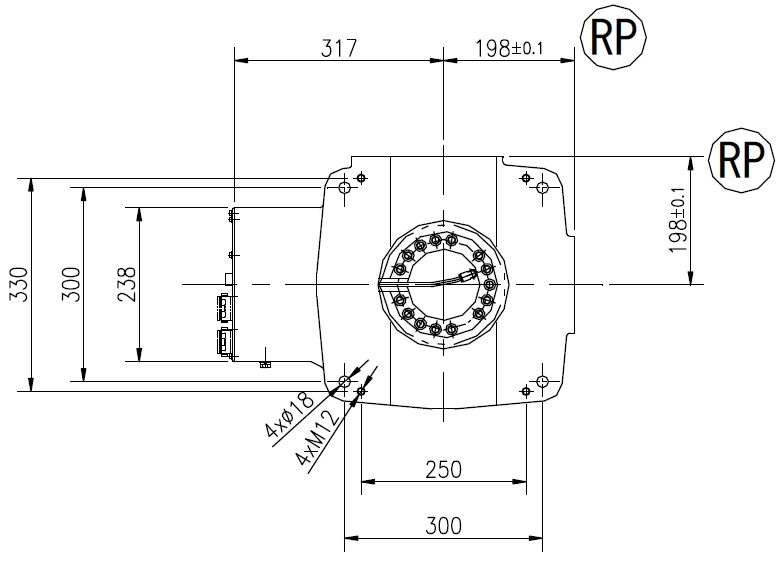

Baseplate Mounting Information and Robot Footprint

The Nachi NB04L is a long-arm welding robot with best-in-class extended reach and through-arm coaxial cable design for maximum mobility in tight spaces and complex fixtures. Enclosed cabling improves wire feeding, prevents snags, and enhances weld quality while boosting productivity. With a compact footprint, advanced collision detection, and superior maintainability, the NB04L delivers reliable performance and easy servicing for demanding welding applications.
____________________________________
Brochure (PDF) Detailed Technical Specification (PDF)



| Weight | 277 kg |
|---|---|
| Reach | 2008 |
| Payload | 4 |
| Application | Arc Welding |
| Mount | Floor, Wallmount, Invert/Ceiling Mount |
