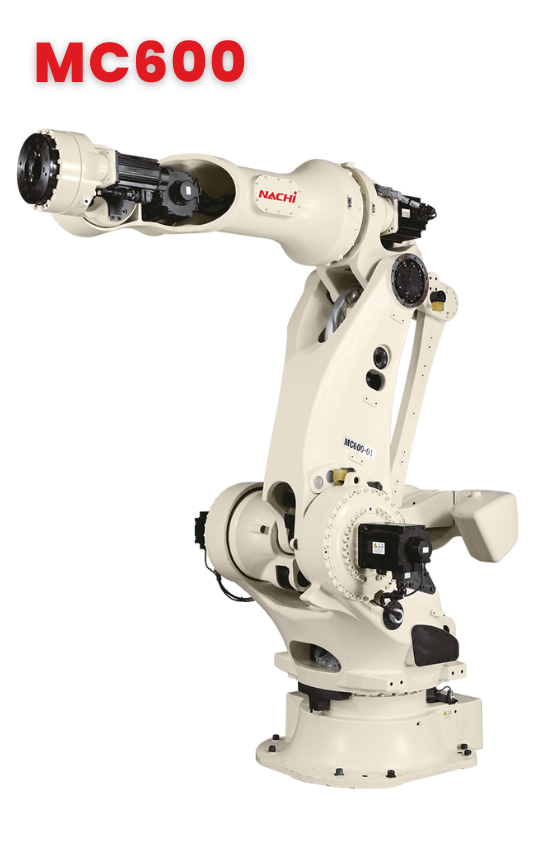

MC600

The MC600 is specifically designed for heavy and repetitive lifting tasks up to 600Kg capacity.  In addition to high payload capacity the MC600 provides an impressive 2890mm (9.5 Foot) work envelope to perform work on several products or machines simultaneously. Superior strength, rigidity, and reach allow allow the MC600 to excel in large scale lifting operations including car bodies, engines, foundry components, and many other heavy industrial products.  MC Heavyweight robots have been used across North America to replace dedicated industrial elevators and transfer equipment for a small fraction of the cost while also providing the flexibility of robotic equipment. If you need to move heavy or large objects with precision look no further than the Nachi MC600.

____________________________________

Detailed Technical Specification (PDF)
Category:

Description

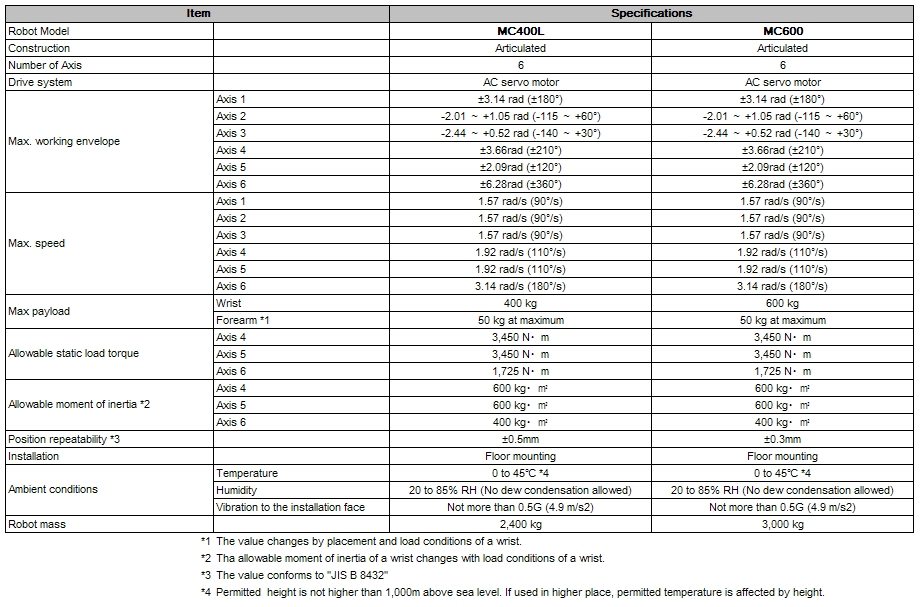

MC600 Specifications

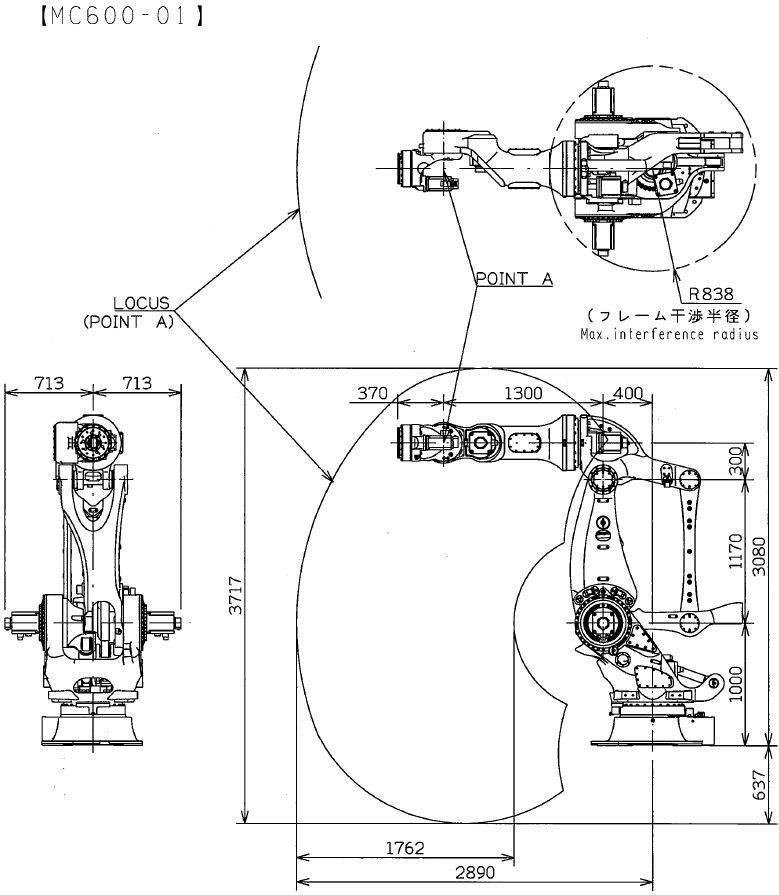

MC600 Profile and Work Envelope

Additional information

Weight 2850 kg
Reach

2890

Payload

600

Application

Machine Tending, Material Handling, Spot Welding

Mount

Floor
