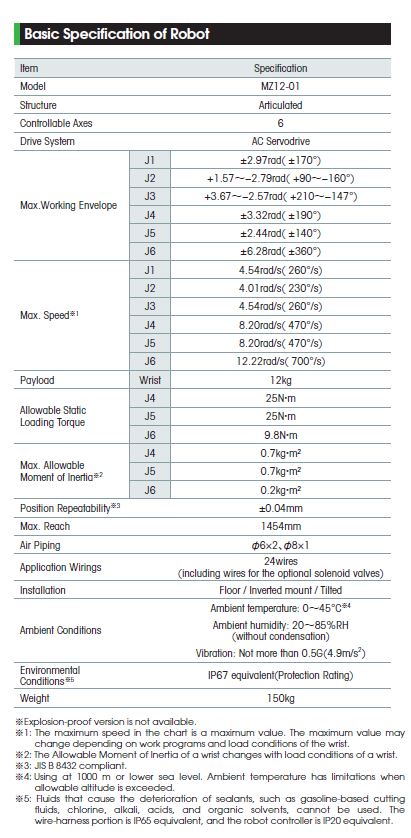

MZ12 General Specifications

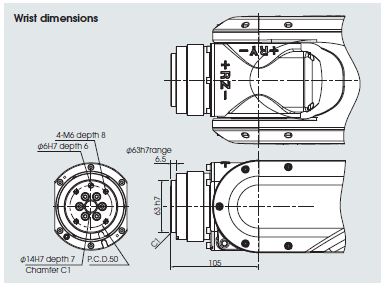

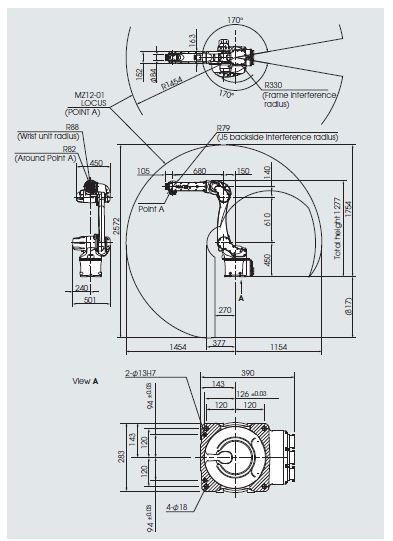

Robot Dimensions and Working Envelope
Nachi’s MZ12 Robot incorporates high speed, generous allowable wrist torque, high payload capacity, and linkless arm design to provide a new standard of functional performance. The MZ12 robot achieves superior performance with improved high-speed motion and excellent positional accuracy. In addition, its footprint is 17% smaller than conventional robots. With a point to point repeatability of ± 0.04mm the MZ12 offers 1454mm of horizontal reach. The slim base minimizes required floor space and provides floor, inverted mount or tilted options to further extend application possibilities and reduce work cell size. Compact arm design reduces interference with peripheral equipment and is also IP67 compliant. Internal air supply lines and signal cabling support numerous applications, optional internal pneumatic valves eliminate the need for shoulder-mounted valve packages.
____________________________________Brochure (PDF) Detailed Technical Specification (PDF)
Machine Tending, Material Handling, Palletizing, Dispensing
Floor, Tilted, Invert/Ceiling Mount
